Manage outbound messages¶
Sending emails with the default configuration¶
If no outgoing mail server is configured in the database, Odoo sends emails through the SMTP server
defined in the server’s configuration file or command-line options (smtp_server, smtp_port,
etc.). This default server is set up by the system administrator or the hosting provider.
The sender addresses are built from the company’s alias domain.
Example
If the alias domain is company-name.com and all mailing configurations are the default ones,
all emails will be sent from [email protected].
The addresses the default server may send from are defined by the system parameter
mail.default.from_filter (or, if it is not set, by the from_filter option of the server
configuration).
In case where the sender’s domain do not match the value of this parameter, the notification address
is used instead. Multiple values can be defined in this system parameter: comma-separated, domains
or full email addresses are all allowed. Once an outgoing mail server is configured, the system parameter is no longer considered
and the value used is the FROM filtering of the mail server.
- menu
- (diagram)
- shows
- Diagram of the default outbound flow: Odoo sends from notifications@<alias domain> through the default SMTP server; replies go to catchall@<alias domain>; delivery errors to bounce@<alias domain>.
- module
- notes
- Simple schematic drawing, not a UI screenshot; use example.com-style domains.
Emails are sent with [email protected] as the reply-to address. In addition,
delivery errors are sent to [email protected].
Note
The catchall, bounce, and notification addresses do not work like other aliases. They do not have the vocation to create records in a database. Emails sent to an alias are automatically routed and will reply to an existing and linked record or will create a new one in the database.
Using a custom domain to send emails¶
The database can be configured to use a custom domain, in which case all default email addresses are
built using the custom domain. If the custom domain is company-name.com, the sender address will
be [email protected], the reply-to address [email protected], and the
bounce address [email protected]. The custom domain can be utilized when sending emails
either with the default mail server or an external one.
This section assumes ownership of a custom domain. If not, a custom domain must be purchased from a domain registrar such as GoDaddy, Namecheap, or any alternative provider.
Using a custom domain with the default mail server¶
Some configurations are mandatory in the custom domain’s DNS to ensure good deliverability.
Warning
Most of the configuration will be done on the domain provider’s side, and it might require some configuration on the mail server itself. Some technical knowledge is required.
The first step is to configure the SPF and DKIM records so that the mail server sending the emails is authorized for the domain.
Next, the custom domain must be set as the alias domain of a company. Select the company, open the Settings, and add the custom domain under the Alias Domain field.
After adding the alias domain, click the (internal link) icon to assign more companies to the custom domain if needed. Enable the Developer mode (debug mode) mode to modify the default aliases if desired:
Bounce Alias: the mailbox used to catch delivery errors and populate the red envelope on the corresponding message.
Catchall Alias: the default mailbox used to centralize all replies.
Default From Alias: the default sender address.
Note
At the creation of the first alias domain, all companies will use it. If you create a new company, the alias domain automatically set is the one with the lowest priority (ad displayed on the alias domain list in Developer mode (debug mode)).
All email aliases (e.g., related to CRM teams or projects) must have their corresponding mailbox in the custom domain mail server.
- menu
- (diagram)
- shows
- Diagram: Odoo sends emails for company-name.com through the default mail server; the domain's DNS holds SPF/DKIM records for that server; replies arrive at the company-name.com mail server and are brought back to Odoo by redirection, incoming mail server or MX record.
- module
- notes
- Simple schematic drawing, not a UI screenshot.
To receive emails in the Odoo database within the corresponding chatter (CRM, invoices, sales orders, etc.), one of these three methods must be used:
MX record (requires advanced technical knowledge)
Using a custom domain implies that specific local-parts might be used by Odoo to send emails.

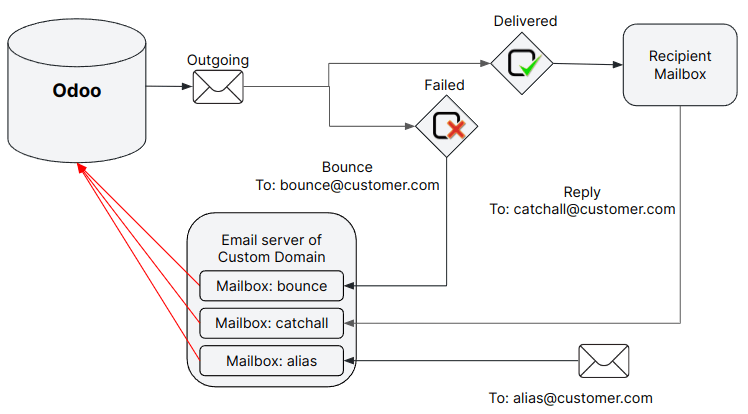

Sending emails with an external SMTP server¶
Note
An external outgoing mail server must be paired with a domain whose DNS records you can manage.
To add an external SMTP server in Odoo, open Settings, and enable the Use Custom Email Servers option found under the Emails section. Then, click Save at the top of the page to save the changes.
Returning to the Emails section, click Outgoing Email Servers, then New to
create an outgoing mail server record. Most fields are the common parameters used to set up a
connection to an SMTP server; use the values provided by your email provider.
The main fields are:
SMTP Server and SMTP Port: the host name (or IP address) and port of the SMTP server.
Connection Encryption: None, TLS (STARTTLS), or SSL/TLS, as required by the provider.
Authenticate with: Username (with Username and Password), SSL Certificate, or Command Line Interface (uses the SMTP settings of the server configuration). Depending on the installed modules, OAuth options such as Gmail or Outlook are also available.
FROM Filtering: see FROM filtering.
Priority: the server with the lowest value is used first.
- menu
- Settings ‣ General Settings ‣ Emails ‣ Outgoing Email Servers ‣ New
- shows
- The outgoing mail server form with Name, FROM Filtering, Priority, SMTP Server, SMTP Port, Connection Encryption, Authenticate with, Username and Password, and the "Test Connection" button.
- highlight
- The "Test Connection" button.
- data
- Server "Company SMTP", smtp.example.com, port 587, TLS (STARTTLS), FROM filtering "example.com".
- module
- base, mail
- notes
- English UI, crop to the form; blur the password.
Once completed, click Test Connection. Note that a successful test connection does not confirm that the email will go out as some restriction might remain on the provider side, thus, it is recommended to consult your provider’s documentation.
Local-part values¶
Below are presented the different local-part values that can be used by Odoo to send emails. It might be required to whitelist them in your mail server:
The Alias Domain Bounce Alias (default value =
bounce),The Alias Domain Default From (default value =
notifications),The default admin address (
[email protected]or, if changed, the new value),The default Odoobot address (
[email protected]or, if changed, the new value),The specific FROM defined on an email marketing campaign,
The specific FROM that can be defined in an email template.
Setting up different servers for transactional and mass emails¶
Personalized mail servers¶
Transactional emails and mass mailings can be sent using separate email servers in Odoo. Doing so means day-to-day emails, quotations, or invoices sent to clients will be handled as transactional emails. Mass mailing emails, including the sending of batches of invoices or quotations, will be managed by the Email Marketing application.
Example
You can use services like Gmail, Amazon SES, or Brevo for transactional emails, and services like Mailgun, Sendgrid, or Mailjet for mass mailings.
First, activate the Developer mode (debug mode) and go to . There, add two outgoing email server records, one for the
transactional emails server and one for the mass mailings server. Enter a lower Priority
value for the transactional server (e.g., 1) over the mass mailings server (e.g., 2) so
transactional emails are given priority.
- menu
- Settings ‣ Technical ‣ Email ‣ Outgoing Mail Servers
- shows
- List of two outgoing mail servers: a transactional server with priority 1 and a mass mailing server with priority 2.
- highlight
- The Priority column.
- data
- Servers "Transactional (smtp.example.com)" and "Mass mailing (smtp.mailing.example.net)".
- module
- base
- notes
- English UI, developer mode active, crop to the list.
Now, go to , enable Dedicated Server, and select the appropriate email server. Odoo uses the server with the lowest priority value for transactional emails, and the server selected here for mass mailings.
- menu
- Email Marketing ‣ Configuration ‣ Settings
- shows
- The "Dedicated Server" setting enabled with the mass mailing server selected.
- highlight
- The Dedicated Server setting.
- module
- mass_mailing
- notes
- English UI, crop to the setting.
FROM filtering¶
Important
It’s highly recommended to configure the FROM Filtering on the outgoing mail servers as per the instructions of your provider.
The FROM Filtering field allows for the use of a specific outgoing email server depending on the From email address or domain that Odoo is sending on behalf of. The value must be a domain or a complete address that matches the sender’s email address and is trusted on the outgoing mail server provider’s side.
If FROM filtering is not used, emails will go out using the notification address.
Warning
Some outgoing mail servers require a specific configuration of the FROM filter.
When an email is sent from Odoo, the following sequence is used to choose the outgoing email server:
First, Odoo searches for a server that has the same FROM filtering value as the From value (i.e., email address) defined in the outgoing email. This configuration is ideal if all users of a company share the same domain but have different local-parts.
Example
If the sender’s email address is [email protected], only an email server having a FROM filtering
value equal to [email protected] or example.com can be used.
If no server is found based on the first criteria, Odoo looks for the first server without a FROM filtering value set. The email will be overridden with the notification address.
If no server is found based on the second criteria, Odoo uses the first server, and the email will be overridden with the notification address.
Note
To determine which server is first, Odoo uses the priority value (the lower the value is, the higher the priority is). Failing to do so, the first server is determined by the servers’ names, using alphabetical order.
If there is no mail server, Odoo relies on the system parameter value.
It is also possible to combine an outgoing mail server record with the default mail server of the server configuration.
Using an external email server and the default server¶

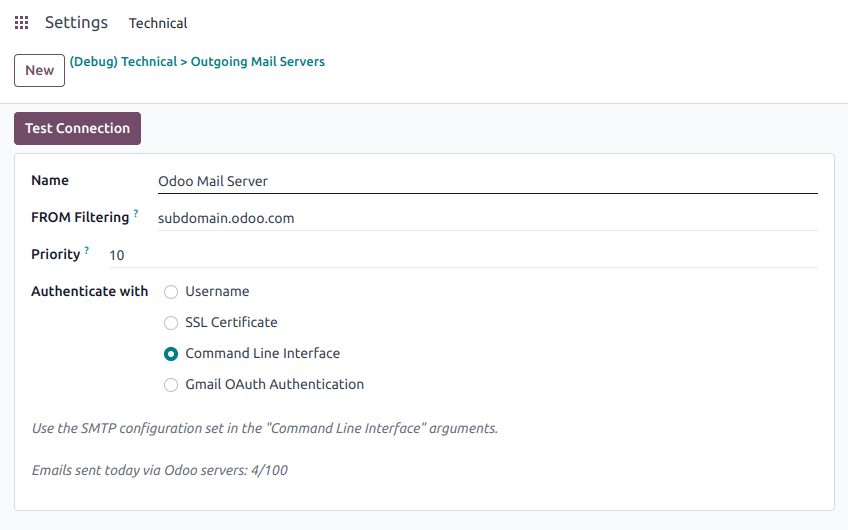

If no outgoing mail server is set in the database, the default SMTP server of the server configuration is used. The same server can also be added as an outgoing mail server record, by selecting Command Line Interface in the Authenticate with field, e.g., to give it a priority and a FROM filter.
- menu
- Settings ‣ Technical ‣ Email ‣ Outgoing Mail Servers ‣ New
- shows
- Outgoing mail server form with "Authenticate with" set to "Command Line Interface" and the information text explaining that the server configuration's SMTP settings are used.
- highlight
- The "Authenticate with" field.
- module
- base
- notes
- English UI, developer mode active, crop to the form.
Example
If an outgoing mail server is used simultaneously with the default server (CLI), the FROM filter of each server must contain the domain (or addresses) that server is allowed to send from. If there is no FROM filtering, the email will go out using the notification address.
- menu
- Settings ‣ Technical ‣ Email ‣ Outgoing Mail Servers
- shows
- List with a "Command Line Interface" server used for transactional emails and an external SMTP server used for mass mailing, each with its own FROM filtering and priority.
- module
- base
- notes
- English UI, developer mode active, crop to the list.
Using a custom domain with an external email server¶
Similar to the previous chapter, proper configuration might be needed to ensure that the external email server is allowed to send emails using your custom domain. Refer to your provider’s documentation to properly set up the relevant records (SPF, DKIM, and DMARC). A list of the most common providers is available.
Note
DNS configuration is required when you use your own domain. The SPF and DKIM records must authorize the mail server that actually sends the emails; see Configure DNS records to send emails in Odoo.
Port restriction¶
Port 25 is often blocked by hosting and cloud providers for security reasons. If the connection fails on port 25, try using port 465, 587, or 2525 instead.
Alias domain¶
The catchall domain is company-specific. By default, all companies share the same alias domain, but each company may have its own custom email domain, selected in the Alias Domain field of the app.
When the Developer mode (debug mode) is activated, the alias domain options are available by going to .
Warning
Any modification of the alias domain must be done very carefully. If one of the aliases (bounce, catchall, default from) is changed, all previous emails that are not properly redirected to the new aliases will be lost.
The Default From Alias field can be filled with a local-part of the email address (by
default notifications) or a full email address. Configure it to determine the FROM header of
your emails. If a full email address is used, all outgoing emails will be overwritten with this
address.
Notification system¶
When an email is sent from the chatter, customers can reply directly to it. If a customer replies directly to an email, the answer is logged in the same chatter, thus functioning as a message thread related to the record.
Upon receiving the reply, Odoo then uses the subscribed followers (based on the subscribed subtypes) to send them a notification by email, or in the Odoo inbox, depending on the user’s preferences.
Example
If a customer with the email address “Mary” <[email protected]> makes a direct reply to
an email coming from the Odoo database, Odoo’s default behavior is to redistribute the email’s
content to all other followers within the thread.
As Mary’s domain does not belong to the alias domain, Odoo overrides the email address and uses
the notification email address to notify the followers. This override depends on the
configuration done in the database. By default, the email FROM address will be overridden with
the value [email protected] instead of [email protected].
The address is constructed using the name of the sender and
{alias domain, default from alias}`@`{alias domain, domain name}, by default,
[email protected].
Using a unique email address for all outgoing emails¶
To force the email address from which emails are sent, activate the Developer mode (debug mode), and go to . On the Default From Alias, use the local-part or a complete email address as the value.
Warning
If a complete address is used as the Default From Alias value, all outgoing emails will be overwritten by this address.
