Routes and push/pull rules¶

Routes in Odoo control the movement of products between different locations, whether internal or external, using push and pull rules. Once set up, these rules help automate the logistics of product movement based on specific conditions.

About routes and terminology¶

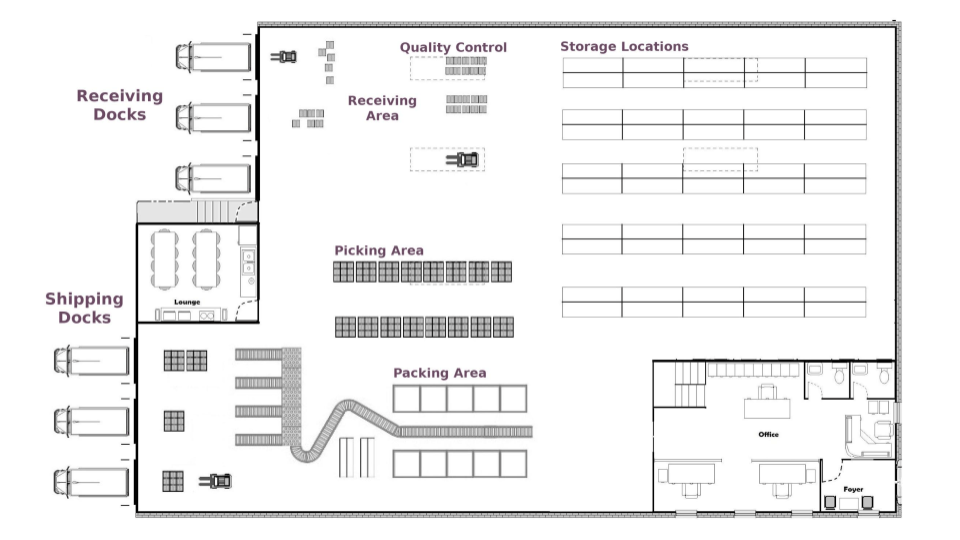

In a generic warehouse, there are receiving docks, a quality control area, storage locations, picking and packing areas, and shipping docks. All products go through all these locations. As the products move through the locations, each location triggers the products’ specified route and rules.

screenshot: daily-operations-use-routes-stock-example

menu: (diagram)
shows: A schematic drawing of a warehouse with an input area, a quality control area, a stock area and an output area.
module: stock
notes: Simple schematic drawing, no Odoo UI.

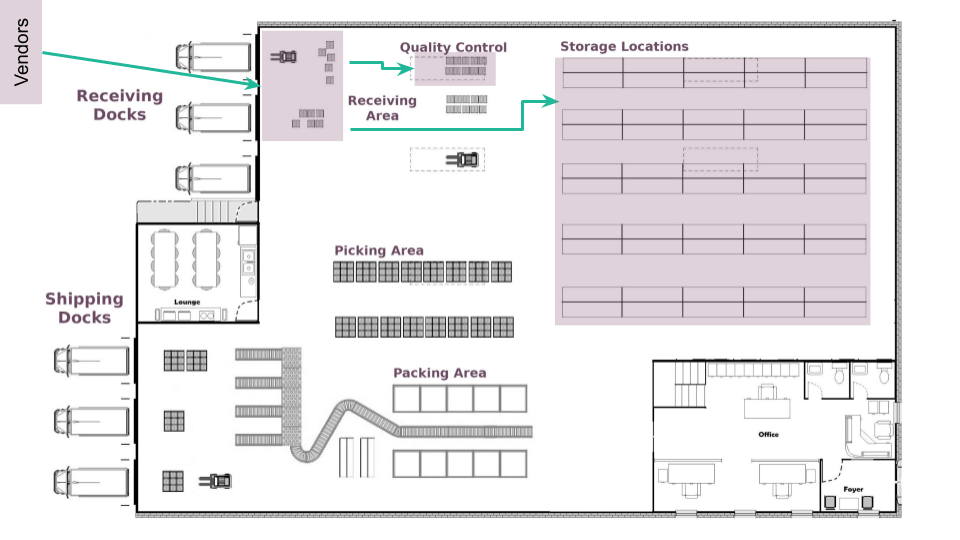

In this example, vendor trucks unload pallets of ordered products at the receiving docks. Operators then scan the products in the receiving area. Depending on the product’s route and rules, some of these products are sent to a quality control area (for example, products that are components used in the manufacturing process), while others are directly stored in their respective locations.

screenshot: daily-operations-use-routes-push-to-rule-example

menu: (diagram)
shows: A schematic drawing of a push rule: goods arriving at the input location are automatically moved on to quality control.
module: stock
notes: Simple schematic drawing, no Odoo UI.

Here is an example of a fulfillment route. In the morning, items are picked for all the orders that need to be prepared during the day. These items are picked from storage locations and moved to the picking area, close to where the orders are packed. Then, the orders are packed in their respective boxes, and conveyor belts bring them to the shipping docks, ready to be delivered to customers.

screenshot: daily-operations-use-routes-pull-from-rule-example

menu: (diagram)
shows: A schematic drawing of a pull rule: a customer demand at the output location triggers a move out of stock.
module: stock
notes: Simple schematic drawing, no Odoo UI.

Push rules¶

Push rules are used to supply products into a storage locations as soon as they arrive at a specific receiving location.

Note

Push rules can only be triggered if there are no pull rules that have already generated the product transfers.

In a one-step receipt route, which uses one push rule, when a product arrives in the warehouse, a push rule can automatically transfer it to the Storage Location. Different push rules can be applied to different products, allowing for customized storage locations.

screenshot: daily-operations-use-routes-push-rule

menu: Inventory ‣ Configuration ‣ Routes
shows: A rule form of the "Receive in one step" route, with Action set to "Push To" and the source and destination locations filled in.
highlight: The "Action" field (red frame).
module: stock
notes: English UI, light theme, 1440px width.

For more information about configuring rules, skip to the Configure rules section.

Pull rules¶

Pull rules trigger product moves on demand, such as a sales order or a need to restock.

Pull rules work backward from the demand location. For example, in a two-step delivery route, where items move from Stock to Output before being delivered to the Customer Location, the pull rule first creates a transfer from Output to the customer. If the product is not at Output, another pull rule creates a transfer from Stock to Output. The warehouse workers then process these transfers in the reverse order: picking, then shipping.

screenshot: daily-operations-use-routes-pull-rule

menu: Inventory ‣ Configuration ‣ Routes
shows: A rule form of the "Deliver in two steps" route, with Action set to "Pull From" and the operation type shown.
highlight: The "Action" field (red frame).
module: stock
notes: English UI, light theme, 1440px width.

For more information about configuring rules, skip to the Configure rules section.

Configuration¶

Since Routes are a collection of Push and Pull Rules, Odoo helps you manage advanced route configurations such as:

Manage product manufacturing chains.
Manage default locations per product.
Define routes within the stock warehouse according to business needs, such as quality control, after-sales services, or supplier returns.
Generate automated return moves, for example for reusable packaging or loaned equipment.

To configure a route for a product, first, open the Inventory application and go to Configuration ‣ Settings. Then, in the Warehouse section, enable the Multi-Step Routes feature and click Save.

screenshot: daily-operations-use-routes-multi-steps-feature

menu: Inventory ‣ Configuration ‣ Settings
shows: The Inventory settings page scrolled to "Warehouse", with the "Multi-Step Routes" checkbox enabled.
highlight: The "Multi-Step Routes" checkbox (red frame).
module: stock
notes: English UI, light theme, 1440px width.

Note

The Storage Locations feature is automatically activated with the Multi-Step Routes feature.

Once this first step is completed, the user can use pre-configured routes that come with Odoo, or they can create custom routes.

Pre-configured routes¶

To access Odoo’s pre-configured routes, go to Inventory ‣ Configuration ‣ Warehouses. Then, open a warehouse form. In the Warehouse Configuration tab, the user can view the warehouse’s pre-configured routes for Incoming Shipments and Outgoing Shipments.

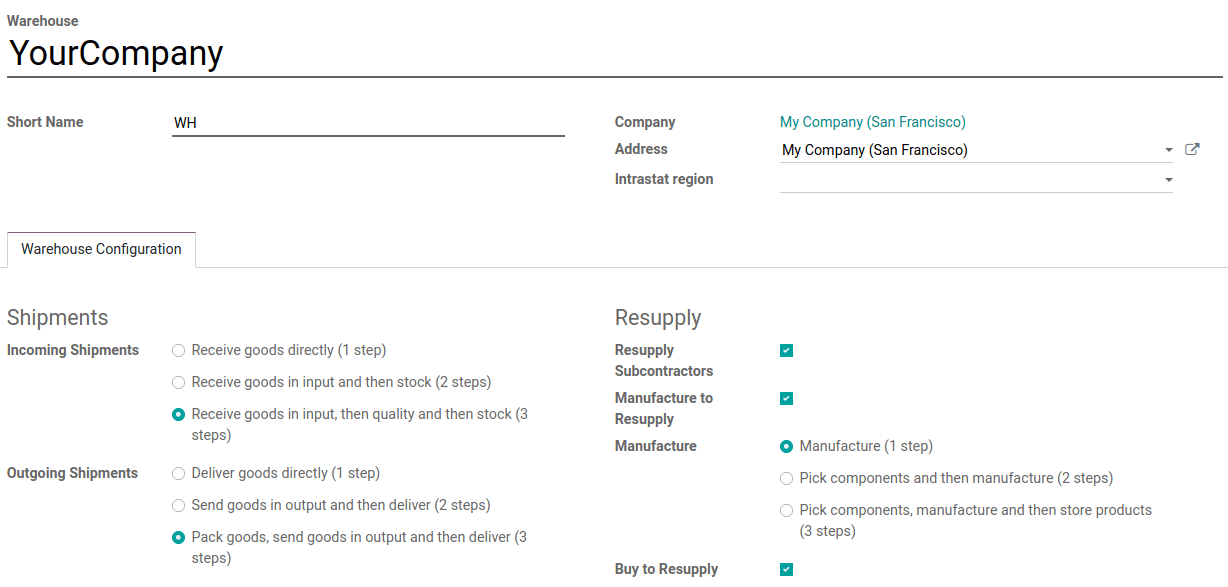

screenshot: daily-operations-use-routes-example-preconfigured-warehouse

menu: Inventory ‣ Configuration ‣ Warehouses
shows: A warehouse form showing the Incoming and Outgoing Shipments step options.
highlight: The shipment step options (red frame).
module: stock
notes: English UI, light theme, 1440px width.

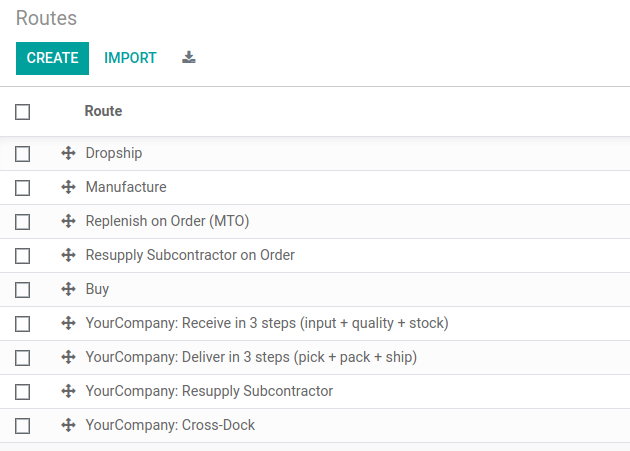

Some more advanced routes, such as pick-pack-ship, are also available. The user can select the route that best fits their business needs. Once the Incoming Shipments and Outgoing Shipments routes are set, head to Inventory ‣ Configuration ‣ Routes to see the specific routes that Odoo generated.

screenshot: daily-operations-use-routes-preconfigured

menu: Inventory ‣ Configuration ‣ Routes
shows: The routes list showing the pre-configured routes: Receive in one/two/three steps, Deliver in one/two/three steps, Buy and Replenish on Order (MTO).
module: stock
notes: English UI, light theme, 1440px width.

On the Routes page, click on a route to open the route form. In the route form, the user can view which places the route is Applicable On. The user can also set the route to only apply on a specific Company. This is useful for multi-company environments; for example, a user can have a company and warehouse in Country A and a second company and warehouse in Country B.

Custom Routes¶

To create a custom route, go to Inventory ‣ Configuration ‣ Routes, and click on Create. Next, choose the places where this route can be selected. A route can be applicable on a combination of places.

screenshot: daily-operations-use-routes-advanced-custom-route

menu: Inventory ‣ Configuration ‣ Routes
shows: A custom route form named "Pick - Pack - Ship" with its three rules in the Rules tab.
module: stock
notes: English UI, light theme, 1440px width.

Each place has a different behavior, so it is important to tick only the useful ones and adapt each route accordingly. Then, configure the Rules of the route.

If the route is applicable on a product category, the route still needs to be manually set on the product category form by going to Inventory ‣ Configuration ‣ Product Categories. Then, select the product category and open the form. Next, click Edit and under the Logistics section, set the Routes.

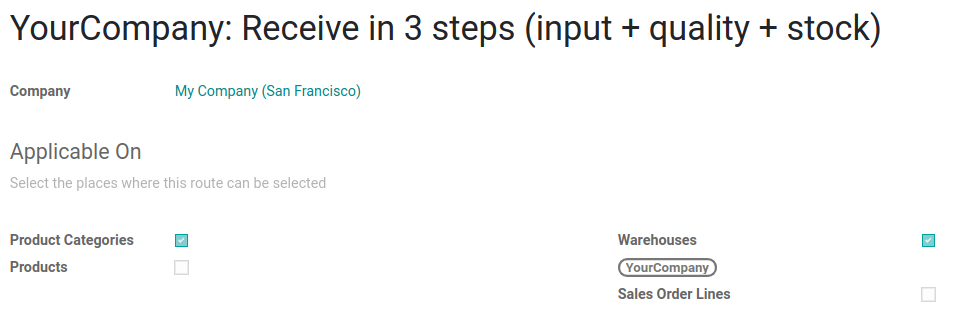

When applying the route on a product category, all the rules configured in the route are applied to every product in the category. This can be helpful if the business uses the dropshipping process for all the products from the same category.

screenshot: daily-operations-use-routes-logistic-section

menu: Inventory ‣ Configuration ‣ Routes
shows: A route form with "Product Categories" ticked under "Applicable On", and the "All" category selected below.
highlight: The "Product Categories" checkbox and the selected category (red frame).
module: stock
notes: English UI, light theme, 1440px width.

The same behavior applies to the warehouses. If the route can apply to Warehouses, all the transfers occurring inside the chosen warehouse that meet the conditions of the route’s rules will then follow that route.

screenshot: daily-operations-use-routes-applicable-on-warehouse

menu: Inventory ‣ Configuration ‣ Routes
shows: A route form with "Warehouses" ticked under "Applicable On" and the warehouse drop-down open.
highlight: The warehouse drop-down (red frame).
module: stock
notes: English UI, light theme, 1440px width.

If the route is applicable on Sales Order Lines, it is more or less the opposite. The route must be manually chosen when creating a quotation. This is useful if some products go through different routes.

Remember to toggle the visibility of the Route column on the quotation/sales order. Then, the route can be chosen on each line of the quotation/sales order.

screenshot: daily-operations-use-routes-add-to-sales-lines

menu: Inventory ‣ Configuration ‣ Routes
shows: A route form with "Sales Order Lines" ticked under "Applicable On".
highlight: The "Sales Order Lines" checkbox (red frame).
module: stock
notes: English UI, light theme, 1440px width.

Finally, there are routes that can be applied to products. Those work more or less like the product categories: once selected, the route must be manually set on the product form.

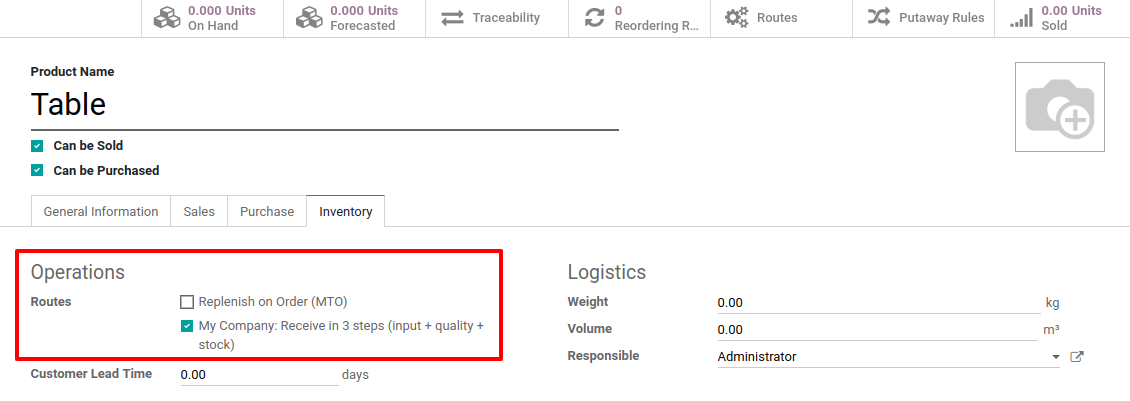

To set a route on a product, go to Inventory ‣ Products ‣ Products and select the desired product. Then, go to the Inventory tab and under the Operations section, select the Routes.

screenshot: daily-operations-use-routes-on-product-route

menu: Inventory ‣ Products ‣ Products
shows: A product form with the Inventory tab open, showing the Routes checkboxes in the Operations section with a custom route ticked.
highlight: The selected route (red frame).
module: stock
notes: English UI, light theme, 1440px width.

Important

Rules must be set on the route in order for the route to work.

Rules¶

The rules are defined on the route form. First, go to Inventory ‣ Configuration ‣ Routes and open the desired route form. Next, click Edit and in the Rules section, click on Add a line.

screenshot: daily-operations-use-routes-add-new-rules

menu: Inventory ‣ Configuration ‣ Routes
shows: The Rules tab of a route with the "Add a line" link, used to add a new rule.
module: stock
notes: English UI, light theme, 1440px width.

The available rules trigger various actions. If Odoo offers Push and Pull rules, others are also available. Each rule has an Action:

Pull From: this rule is triggered by a need for the product in a specific location. The need can come from a sales order being validated or from a manufacturing order requiring a specific component. When the need appears in the destination location, Odoo generates a picking to fulfill this need.
Push To: this rule is triggered by the arrival of some products in the defined source location. In the case of the user moving products to the source location, Odoo generates a picking to move those products to the destination location.
Pull & Push: this rule allows the generation of pickings in the two situations explained above. This means that when products are required at a specific location, a transfer is created from the previous location to fulfill that need. This creates a need in the previous location and a rule is triggered to fulfill it. Once the second need is fulfilled, the products are pushed to the destination location and all the needs are fulfilled.
Buy: when products are needed at the destination location, a request for quotation is created to fulfill the need.
Manufacture: when products are needed in the source location, a manufacturing order is created to fulfill the need.

screenshot: daily-operations-use-routes-pull-from-rule-stock-to-packing

menu: Inventory ‣ Configuration ‣ Routes
shows: A "Pull From" rule form moving goods from WH/Stock to WH/Packing Zone, with the operation type set to Internal Transfer.
data: Rule of the "Pick - Pack - Ship" route.
module: stock
notes: English UI, light theme, 1440px width.

The Operation Type must also be defined on the rule. This defines which kind of picking is created from the rule.

If the rule’s Action is set to Pull From or Pull & Push, a Supply Method must be set. The Supply Method defines what happens at the source location:

Take From Stock: the products are taken from the available stock of the source location.
Trigger Another Rule: the system tries to find a stock rule to bring the products to the source location. The available stock is ignored.
Take From Stock, if Unavailable, Trigger Another Rule: the products are taken from the available stock of the source location. If there is no stock available, the system tries to find a rule to bring the products to the source location.

Example flow¶

In this example, let’s use a custom Pick - Pack - Ship route to try a full flow with an advanced custom route.

First, a quick look at the route’s rules and their supply methods. There are three rules, all Pull From rules. The Supply Methods for each rule are the following:

Take From Stock: When products are needed in the WH/Packing Zone, picks (internal transfers from WH/Stock to WH/Packing Zone) are created from WH/Stock to fulfill the need.
Trigger Another Rule: When products are needed in WH/Output, packs (internal transfers from WH/Packing Zone to WH/Output) are created from WH/Packing Zone to fulfill the need.
Trigger Another Rule: When products are needed in Partner Locations/Customers, delivery orders are created from WH/Output to fulfill the need.

screenshot: daily-operations-use-routes-transfers-overview

menu: Inventory ‣ Operations ‣ Transfers
shows: The transfers list showing the three transfers created by a pick-pack-ship route for one sales order.
data: Pick, Pack and Delivery Order of the same sales order.
module: stock
notes: English UI, light theme, 1440px width.

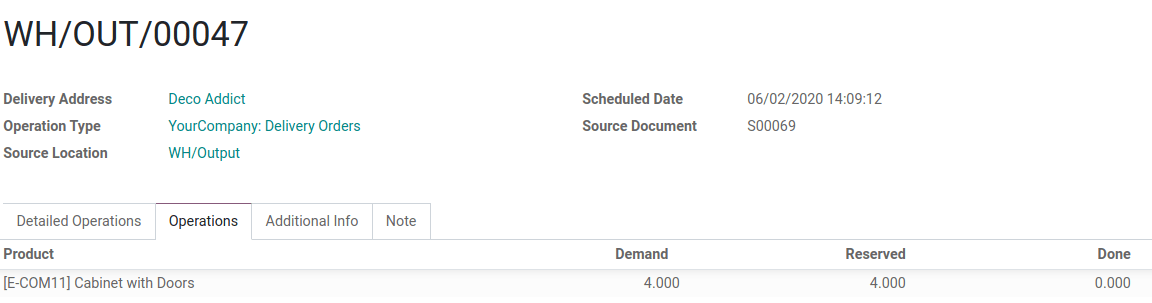

This means that, when a customer orders products that have a pick - pack - ship route set on it, a delivery order is created to fulfill the order.

screenshot: daily-operations-use-routes-on-transfers

menu: Inventory ‣ Operations ‣ Transfers
shows: The Operations tab of the pick transfer created by the pull rule, showing the source and destination locations.
module: stock
notes: English UI, light theme, 1440px width.

Note

If the source document for multiple tranfers is the same sales order, the status is not the same. The status will be Waiting Another Operation if the previous transfer in the list is not done yet.

screenshot: daily-operations-use-routes-waiting-status

menu: Inventory ‣ Operations ‣ Transfers
shows: The three chained transfers at the start of the flow: the first is Ready, the other two are "Waiting Another Operation".
highlight: The status column (red frame).
module: stock
notes: English UI, light theme, 1440px width.

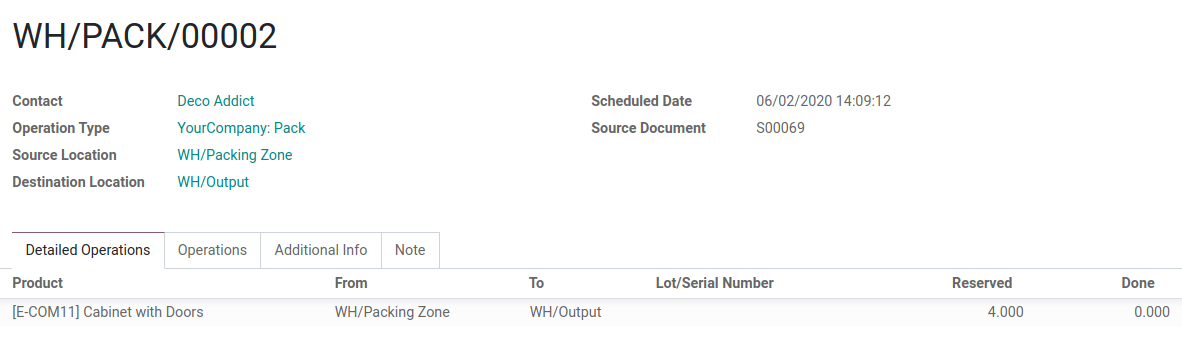

To prepare the delivery order, packed products are needed at the output area, so an internal transfer is requested from the packing zone.

screenshot: daily-operations-use-routes-detailed-2

menu: Inventory ‣ Operations ‣ Transfers
shows: The detailed operations of the transfer between the packing zone and the output location.
data: Transfer WH/PACK/00001.
module: stock
notes: English UI, light theme, 1440px width.

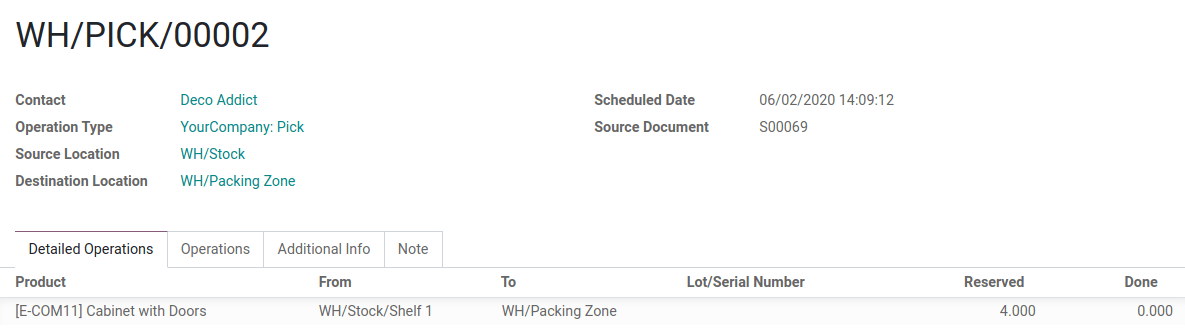

Obviously, the packing zone needs products ready to be packed. So, an internal transfer is requested to the stock and employees can gather the required products from the warehouse.

screenshot: daily-operations-use-routes-detailed-transfer

menu: Inventory ‣ Operations ‣ Transfers
shows: The detailed operations of the transfer between stock and the packing zone.
data: Transfer WH/PICK/00001.
module: stock
notes: English UI, light theme, 1440px width.

As explained in the introduction of the documentation, the last step in the process (for this route, the delivery order) is the first to be triggered, which then triggers other rules until we reach the first step in the process (here, the internal transfer from the stock to the packing area). Now, everything is ready to be processed so the customer can get the ordered items.

In this example, the product is delivered to the customer when all the rules have been triggered and the transfers are done.

screenshot: daily-operations-use-routes-transfers-status

menu: Inventory ‣ Operations ‣ Transfers
shows: The same three transfers once the route is completed, all in "Done" status.
highlight: The status column (red frame).
module: stock
notes: English UI, light theme, 1440px width.
