Shipping carrier connectors¶

A shipping carrier connector links Odoo to a carrier’s own system, so that Odoo can verify whether the carrier delivers to a given address, automatically calculate shipping costs, generate shipping labels, and receive tracking numbers.

Carrier connectors can be applied to a sales order (SO), invoice, or delivery order. For tips on resolving common issues when configuring a connector, skip to the Troubleshooting section.

The following carrier connectors are available:

Carrier	Module	Region availability
GLS	Delivery GLS (`eyssen_delivery_gls`)	Hungary and GLS parcel-shop countries
MPL (Magyar Posta)	Delivery MPL (`eyssen_delivery_mpl`)	Hungary
Foxpost	Delivery Foxpost (`eyssen_delivery_foxpost`)	Hungary
Custom carrier	Delivery Custom (`eyssen_delivery_custom`)	Any carrier that accepts a printed label
Mondial Relay	Mondial Relay (`delivery_mondialrelay`)	France and neighboring countries

Note

Carriers without a connector are still usable: configure them as a Fixed Price or Based on Rules delivery method, or use the custom carrier module to print a label with the carrier’s own layout.

Configuration¶

To set up a carrier connector, follow these steps:

Install the shipping connector.
Set up delivery method.
Activate production environment.
Configure warehouse.
Specify weight of products.

Install shipping connector¶

Each carrier connector is a separate module. To install one, install the module listed in the table above from the Apps application (for example, Delivery GLS). Installing a connector also installs the Delivery Costs module it depends on.

Note

The Shipping Connectors block on the Inventory app ‣ Configuration ‣ Settings page lists connectors that are not part of this database; install the connector modules from Apps instead.

Note

Delivery methods are also used by the Sales, eCommerce, and Website apps.

Delivery method¶

To configure the API credentials, and activate the shipping carrier, begin by going to Inventory app ‣ Configuration ‣ Shipping Methods, and select the desired delivery method.

Note

The list often includes two delivery methods from the same Provider: one for international shipping and one for domestic shipping.

Additional delivery methods can be created for specific purposes, such as packaging.

See also

Configure delivery methods

Note

Ensure the delivery method is published when it should be available on the Website app. To publish a delivery method on the website, click the desired delivery method, then click the Unpublished smart button. Doing so changes that smart button to read: Published.

The Shipping Method page contains details about the provider, including:

Shipping Method (Required field): the name of the delivery method (e.g. GLS Home Delivery, GLS ParcelShop, etc.).
Website: configure shipping methods for an eCommerce page that is connected to a specific website in the database. Select the applicable website from the drop-down menu, or leave it blank to apply the method to all web pages.
Provider (Required field): choose the delivery service, like GLS. Upon choosing a provider, the Integration Level, Invoicing Policy and Insurance Percentage fields become available.
Integration Level: choose Get Rate to simply get an estimated shipment cost on an SO or invoice.

Important
Select Get Rate and Create Shipment to also generate shipping labels.
Company: if the shipping method should apply to a specific company, select it from the drop-down menu. Leave the field blank to apply the method to all companies.
Delivery Product (Required field): the delivery charge name that is added to the SO or invoice.
Invoicing Policy: select and calculate an Estimated cost of shipping directly from the shipping carrier. If the Real cost of shipping is wanted instead, refer to Invoice real shipping costs document.
Margin on Rate: specify an additional percentage amount added to the base shipping rate to cover extra costs, such as handling fees, packaging materials, exchange rates, etc.
Free if order amount is above: enables free shipping for orders surpassing a specified amount entered in the corresponding Amount field.
Insurance Percentage: specify a percentage amount of the shipping costs reimbursed to the senders if the package is lost or stolen in transit. The field is only shown for connectors that support shipping insurance.

screenshot: setup-configuration-third-party-shipper-carrier-form

menu: Inventory ‣ Configuration ‣ Shipping Methods
shows: A delivery method form of a carrier connector, showing the Provider, Integration Level, Delivery Product, Invoicing Policy and Margin on Rate fields.
data: Delivery method "GLS Home Delivery", provider GLS.
module: eyssen_delivery_gls
notes: English UI, light theme, 1440px width.

Shipping Method configuration page for GLS Home Delivery.

In the Configuration tab, fill out the API credential fields (e.g. API key, password, account number, etc.). Depending on the carrier chosen in the Provider field, the Configuration tab contains different required fields. For details about configuring a specific carrier’s credentials, refer to the following documents:

See also

Production environment¶

With the delivery method details configured, click the Test Environment smart button to set it to Production Environment.

Warning

Setting the delivery method to Production creates real shipping labels, and the carrier account may be charged before the customer is charged for shipping. Verify all configurations are correct before switching the delivery method to Production.

screenshot: setup-configuration-third-party-shipper-production

menu: Inventory app ‣ Configuration ‣ Shipping Methods
shows: A delivery method form with the "Test Environment" smart button at the top, used to switch to the production environment.
highlight: The "Test Environment" smart button (red frame).
module: delivery
notes: English UI, light theme, 1440px width.

Warehouse configuration¶

Ensure the warehouse’s Address (including ZIP code) and Phone number are entered accurately. To do that, go to Inventory app ‣ Configuration ‣ Warehouses, and select the desired warehouse.

On the warehouse configuration page, open the warehouse contact page by clicking the Company field.

screenshot: setup-configuration-third-party-shipper-internal-link

menu: Inventory ‣ Configuration ‣ Warehouses
shows: A warehouse form with the "Company" field and its internal-link arrow, which opens the company contact.
highlight: The "Company" field (red frame).
module: delivery
notes: English UI, light theme, 1440px width.

Verify that the Address and Phone number are correct, as they are required for the shipping connector to work properly.

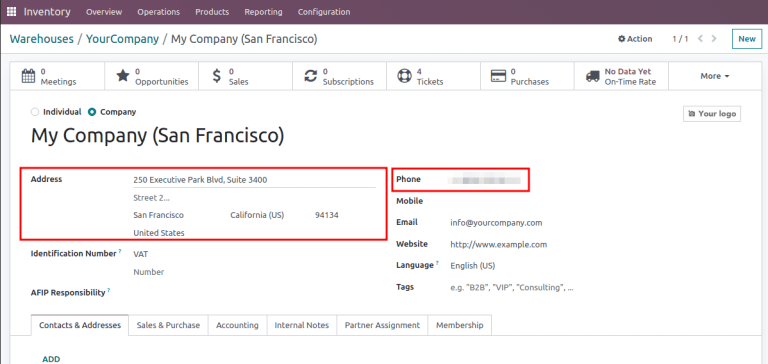

screenshot: setup-configuration-third-party-shipper-company

menu: Settings ‣ Users & Companies ‣ Companies
shows: A company form showing the full Address (with ZIP code) and the Phone number filled in.
highlight: The Address and Phone fields (red frame).
module: delivery
notes: English UI, light theme, 1440px width.

Product weight¶

For the carrier integration to work properly, specify the weight of products by going to Inventory app ‣ Products ‣ Products, and selecting the desired product.

Then, switch to the Inventory tab, and define the Weight of the product in the Logistics section.

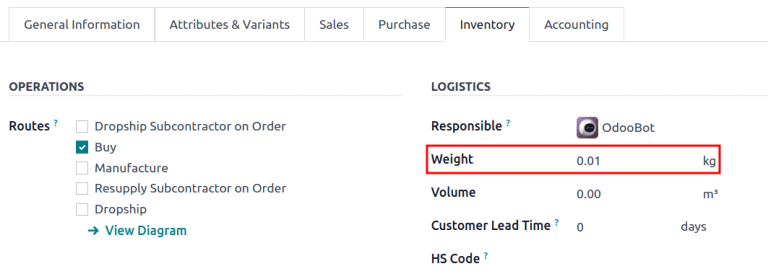

screenshot: setup-configuration-third-party-shipper-product-weight

menu: Inventory app ‣ Products ‣ Products
shows: The Inventory tab of a product form, with the "Weight" field filled in under Logistics.
highlight: The "Weight" field (red frame).
module: stock
notes: English UI, light theme, 1440px width.

Apply a shipping carrier¶

Shipping carriers can be applied on a SO, invoice, or delivery order.

After configuring the carrier’s delivery method in Odoo, create or navigate to a quotation by going to Sales app ‣ Orders ‣ Quotations.

Sales order¶

To assign a shipping carrier, and get an estimated cost of shipping, begin by going to Sales app ‣ Orders ‣ Quotations. Create or select an existing quotation, and add the cost of shipping through a carrier connector to a quotation, by clicking the Add Shipping button in the bottom-right corner of the Order Lines tab.

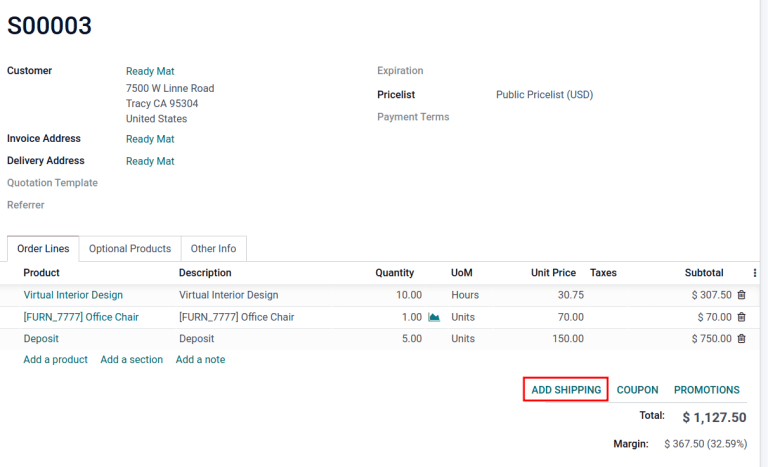

screenshot: setup-configuration-third-party-shipper-add-shipping

menu: Sales app ‣ Orders ‣ Quotations
shows: A quotation with the "Add Shipping" button in the bottom-right corner of the Order Lines tab.
highlight: The "Add Shipping" button (red frame).
module: delivery
notes: English UI, light theme, 1440px width.

In the resulting Add a shipping method pop-up window, select the intended carrier from the Shipping Method drop-down menu. The Cost field is automatically filled based on:

the amount specified in the Total Order Weight field (if it is not provided, the sum of product weights in the order is used)
the distance between the warehouse’s source address and the customer’s address.

After selecting a connected provider in the Shipping Method field, click Get Rate in the Add a shipping method pop-up window to get the estimated cost through the shipping connector. Then, click the Add button to add the delivery charge to the SO or invoice.

Delivery order¶

For users making shipments without installing the Sales app, assign the shipping carrier to the delivery order, by first going to the Inventory app. Then, from the Inventory Overview dashboard, select the Delivery Orders operation type, and choose the desired delivery order that is not already marked as Done or Cancelled.

In the Additional info tab, set the Carrier field to the desired shipping carrier. When the delivery method is set to production mode, a Tracking Reference is provided.

See also

Generate shipping labels

screenshot: setup-configuration-third-party-shipper-delivery-info

menu: Inventory ‣ Delivery Orders
shows: The "Additional info" tab of a delivery order, with the Carrier and Tracking Reference fields filled in.
highlight: The "Carrier" and "Tracking Reference" fields (red frame).
module: delivery
notes: English UI, light theme, 1440px width.

Troubleshooting¶

Since shipping connectors can sometimes be complex to set up, here are some checks to try when things are not working as expected:

Ensure the warehouse information (e.g., address and phone number) in Odoo is correct and matches the records saved in the shipping provider’s website.
Verify that the package type and parameters are valid for the shipping carrier. To check, ensure the shipment can be directly created on the shipping carrier’s website.
When encountering a price mismatch between Odoo’s estimated cost and the provider’s charge, first ensure the delivery method is set to production environment.

Then, create the shipment in both the carrier’s website and Odoo, and verify the prices are the same across Odoo, the shipping provider, and in the debug logs.

Example
When checking for a price mismatch in the debug logs, if the request says the package weighs six kilograms, but the carrier’s response says the package weighs seven kilograms, the issue is on the carrier’s side.

Debug log¶

Track shipping data inconsistencies by activating debug logging. To do that, go to the delivery method’s configuration page (Inventory app ‣ Configuration ‣ Shipping Method), and select the desired shipping method. Click the No Debugging smart button to activate Debug Requests.

screenshot: setup-configuration-third-party-shipper-no-debug

menu: Inventory ‣ Configuration ‣ Shipping Methods
shows: A delivery method form with the "No Debugging" smart button at the top.
highlight: The "No Debugging" smart button (red frame).
module: delivery
notes: English UI, light theme, 1440px width.

With Debug Requests activated, each time the shipping connector is used to estimate the cost of shipping, records are saved in the Logging report. To access the report, turn on developer mode, and go to Settings app ‣ Technical ‣ Database Structure section ‣ Logging.

Note

Logs are created for a shipping method each time the Get Rate button is clicked on SOs and invoices, and when a customer adds the shipping carrier to their order through the Website app.

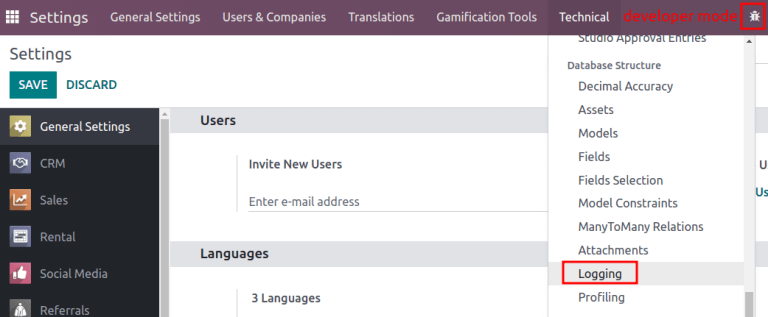

screenshot: setup-configuration-third-party-shipper-log

menu: Settings ‣ Technical
shows: The Settings Technical menu opened, with the "Logging" item under Database Structure.
highlight: The "Logging" menu item (red frame).
module: delivery
notes: English UI, light theme, 1440px width, developer mode on.

Click the HTTP request line item to open a detailed page, and verify the correct information is sent from Odoo to the shipping carrier. In the HTTP response, verify that the same information is received.

screenshot: setup-configuration-third-party-shipper-logging

menu: Settings ‣ Technical ‣ Logging
shows: The Logging list showing HTTP request and response records created by the carrier connector.
module: delivery
notes: English UI, light theme, 1440px width, developer mode on.
