Gmail Plugin

The Gmail Plugin integrates an Odoo database with a Gmail inbox, so users can keep track of all their work between Gmail and Odoo, without losing any information.

Installation and configuration

Follow the steps below to configure the Gmail Plugin for a database hosted on your own domain.

Note

As part of their security guidelines, Google requires add-on creators to provide a list of URLs that can be used in actions and redirections launched by the add-on. This protects users by ensuring, for example, that no add-on redirects users toward a malicious website. (Read more on Google Apps Script.)

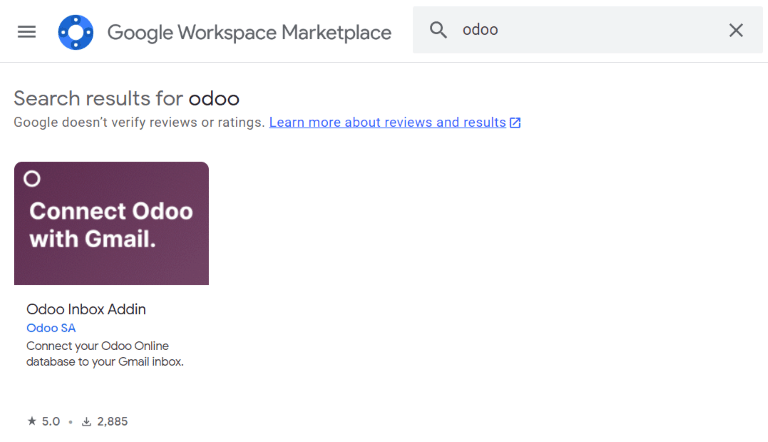

The Gmail Plugin published on the Google Workspace Marketplace only allows the domains listed by its publisher (odoo.com). Databases hosted on other domains therefore need their own copy of the plugin, as described below.

Install the Gmail Plugin

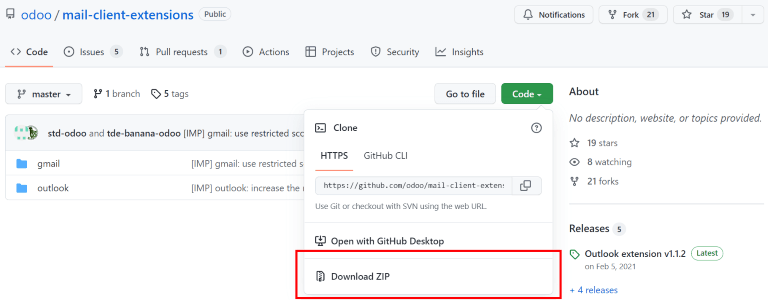

First, access the GitHub repository for the Odoo Mail Plugins. Next, click on the green Code button. Then, click Download ZIP to download the Mail Plugin files onto the user’s computer.

Open the ZIP file on the computer. Then, go to mail-client-extensions-master ‣ gmail ‣ src ‣ views, and open the login.ts file using any text editor software, such as Notepad (Windows), TextEdit (Mac), or Visual Studio Code.

Delete the following three lines of text from the login.ts file:

if (!/^https:\/\/([^\/?]*\.)?odoo\.com(\/|$)/.test(validatedUrl)) {
     return notify("The URL must be a subdomain of odoo.com");
}

This removes the odoo.com domain constraint from the Gmail Plugin program.

Next, in the ZIP file, go to mail-client-extensions-master ‣ gmail, and open the file called appsscript.json. In the urlFetchWhitelist section, replace all the references to odoo.com with the domain of the Odoo database.

Then, in the same gmail folder, open the file called README.md. Follow the instructions in the README.md file to push the Gmail Plugin files as a Google Project.

Note

The computer must be able to run Linux commands in order to follow the instructions on the README.md file.

After that, share the Google Project with the Gmail account that the user wishes to connect to Odoo. Then, click Publish and Deploy from manifest. Lastly, click Install the add-on to install the Gmail Plugin.

Configure the Odoo database

The Mail Plugin feature must be enabled in the Odoo database in order to use the Gmail Plugin. To enable the feature, go to Settings ‣ General Settings. Under the Integrations section, activate Mail Plugin, and then click Save.

screenshot: general-gmail-plugin-setting

menu

Settings ‣ General Settings ‣ Integrations

shows

The "Mail Plugin" setting enabled.

highlight

The Mail Plugin setting.

module

mail_plugin

notes

English UI, crop to the setting.

Configure the Gmail inbox

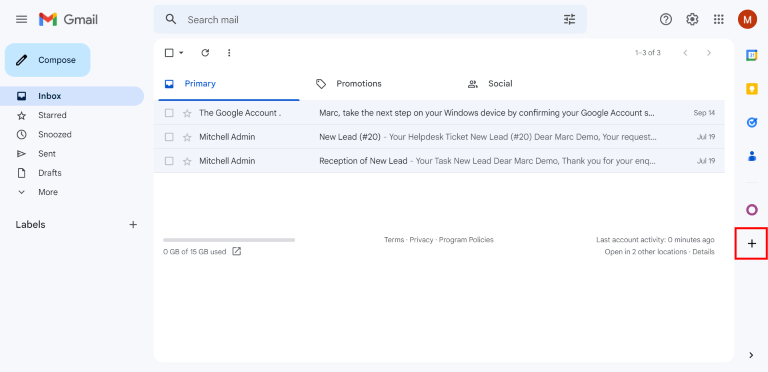

In the Gmail inbox, a purple Odoo icon is now visible on the right side panel. Click on the Odoo icon to open up the Odoo plugin window. Then, click on any email in the inbox. Click Authorize Access in the plugin window to grant Odoo access to the Gmail inbox.

Next, click Login. Then, enter the URL of the Odoo database that the user wishes to connect to the Gmail inbox, and log in to the database.

Note

Use the general URL for the database, not the URL of a specific page in the database. For example, use https://erp.mycompany.com, not https://erp.mycompany.com/odoo/action-menu.

Finally, click Allow to let Gmail access the Odoo database. The browser will then show a Success! message. After that, close the window. The Gmail inbox and Odoo database are now connected.
