Pipeline Analysis¶
The CRM app manages the sales pipeline as leads/opportunities move from stage to stage, origination to sale (Won) or archival (Lost).
After organizing the pipeline, use the search options and reports available on the Pipeline Analysis page to gain insight into the effectiveness of the pipeline and its users.
To access the Pipeline Analysis page, go to .
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- The CRM Reporting menu open on the Pipeline entry.
- highlight
- The Pipeline entry (red frame).
- data
- Demo database.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the open menu.
Search options¶

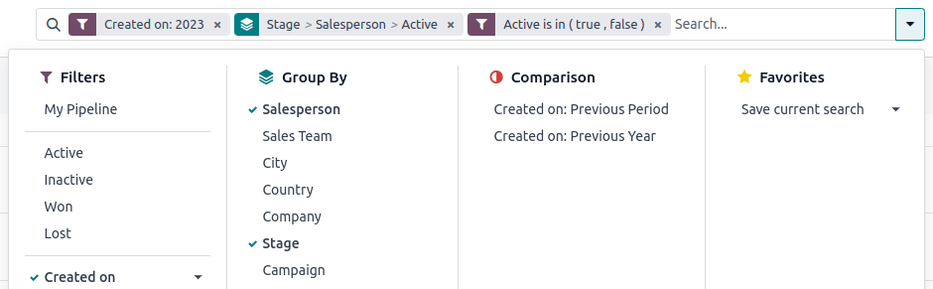

The Pipeline Analysis page can be customized with various filters and grouping options.
To add new search criteria, type the desired criteria into the search bar, or click the ⬇️ (down arrow) icon, next to the search bar, to open a drop-down menu of all options. See the sections below for more information on what each option does.
- menu
- CRM ‣ Reporting ‣ Pipeline ‣ Filters
- shows
- The open search panel of the Pipeline Analysis page with the Filters, Group By and Favorites columns.
- highlight
- No highlight; the panel is the subject.
- data
- Demo database.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the search panel.
The Filters section allows users to add pre-made and custom filters to the search criteria. Multiple filters can be added to a single search.
My Pipeline: show leads assigned to the current user.
Opportunities: show leads that have been qualified as opportunities.
Leads: show leads that have yet to be qualified as opportunities.
Active: show active leads.
Inactive: show inactive leads.
Won: show leads that have been marked Won.
Lost: show leads that have been marked Lost.
Created On: show leads that were created during a specific period of time. By default, this is the past year, but it can be adjusted as needed, or removed entirely.
Expected Closing: show leads that are expected to close (marked Won) during a specific period of time.
Date Closed: show leads that were closed (marked Won) during a specific period of time.
Archived: show leads that have been archived (marked Lost).
Add Custom Filter: allows the user to create a custom filter with numerous options. (See Add Custom Filters and Groups for more information)
The Group By section allows users to add pre-made and custom groupings to the search results. Multiple groupings can be added to split results into more manageable chunks.
Important
The order that groupings are added affects how the final results are displayed. Try selecting the same combinations in a different order to see what works best for each use case.
Salesperson: groups the results by the Salesperson to whom a lead is assigned.
Sales Team: groups the results by the Sales Team to whom a lead is assigned.
City: groups the results by the city from which a lead originated.
Country: groups the results by the country from which a lead originated.
Company: groups the results by the company to which a lead belongs (if multiple companies are activated in the database).
Stage: groups the results by the stages of the sales pipeline.
Campaign: groups the results by the marketing campaign from which a lead originated.
Medium: groups the results by the medium (Email, Google Adwords, Website, etc.) from which a lead originated.
Source: groups the results by the source (Search engine, Lead Recall, Newsletter, etc.) from which a lead originated.
Creation Date: groups the results by the date a lead was added to the database.
Conversion Date: groups the results by the date a lead was converted to an opportunity.
Expected Closing: groups the results by the date a lead is expected to close (marked “Won”).
Closed Date: groups the results by the date a lead was closed(marked “Won”).
Lost Reason: groups the results by the reason selected when a lead was marked “Lost.”
Add Custom Group: allows the user to create a custom group with numerous options. (See Adding Custom Filters and Groups for more information)
The Comparison section allows users to add comparisons to the same search criteria over another period of time.
This option is only available if the search includes time-based filters, such as Created On, Expected Closing, or Date Closed. While multiple time-based filters can be added at once, only one comparison can be selected at a time.
Previous Period: adds a comparison to the same search criteria from the previous period.
Previous Year: adds a comparison to the same search criteria from the previous year.
The Favorites section allows users to save a search for later, so it does not need to be recreated every time.
Multiple searches can be saved, shared with others, or even set as the default for whenever the Pipeline Analysis page is opened.
Save current search: save the current search criteria for later.
Default filter: when saving a search, check this box to make it the default search filter when the Pipeline Analysis page is opened.
Shared: when saving a search, check this box to make it available to other users.
Add custom filters and groups¶
In addition to the pre-made options in the search bar, the Pipeline Analysis page can also utilize custom filters and groups.
Custom filters are complex rules that further customize the search results, while custom groups display the information in a more organized fashion.
To add a custom filter:
On the Pipeline Analysis page, click the down arrow icon next to the Search… bar.
In the drop-down menu, click Add Custom Filter.
The Add Custom Filter pop-up window appears with a default rule (Country is in _____) comprised of three unique fields. These fields can be edited to make a custom rule, and multiple rules can be added to a single custom filter.
To edit a rule, start by clicking the first field (Country), and select an option from the drop-down menu. The first field determines the primary subject of the rule.
Next, click the second field, and select an option from the drop-down menu. The second field determines the relationship of the first and third fields, and is usually an is or is not statement, but can also be greater than or less than statements, and more.
Finally, click the third field, and select an option from the drop-down menu. The third field determines the secondary subject of the rule.
With all three fields selected, the rule is complete.
To add more rules: click New Rule and repeat steps 4-7, as needed.
To delete a rule: click the 🗑️ (trash) icon to the right of the rule.
To duplicate an existing rule: click the ➕ (plus sign) icon to the right of the rule.

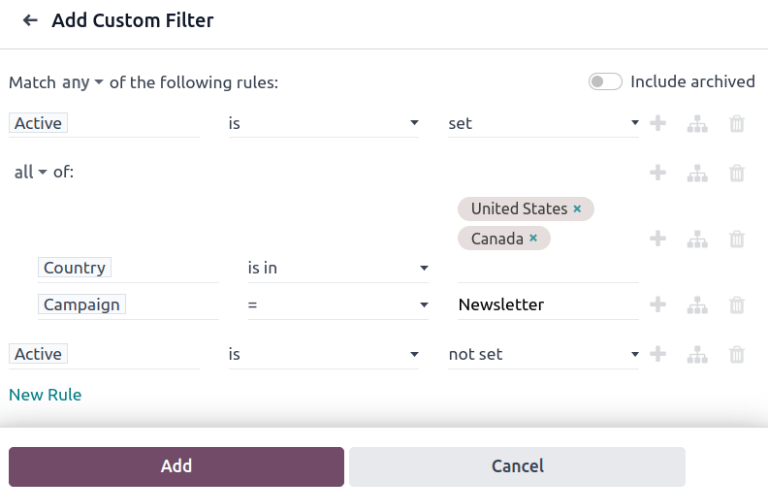

To create more complex rules: click the Add branch icon to the right of the rule. This adds another modifier below the rule for adding an “all of” or “any of” statement.
- menu
- CRM ‣ Reporting ‣ Pipeline ‣ Filters ‣ Add Custom Filter
- shows
- The custom-filter editor with a nested branch, showing how "all" and "any" conditions can be combined.
- highlight
- The branch and its "any" selector (red frame).
- data
- Two rules in a nested branch.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the rule editor.
Once all rules have been added, click Add to add the custom filter to the search criteria.
To remove a custom filter: click the ✖️ (x) icon beside the filter in the search bar.
To add a custom group:
On the Pipeline Analysis page, click the down arrow icon next to the search bar.
In the drop-down menu that appears, click Add Custom Group.
Scroll through the options in the drop-down menu, and select one or more groups.
To remove a custom group: click the ✖️ (x) icon beside the custom group in the search bar.
Measurement options¶
By default, the Pipeline Analysis page measures the total Count of leads that match the search criteria, but can be changed to measure other items of interest.
To change the selected measurement, click the Measures button on the top-left of the page, and select one of the following options from the drop-down menu:
Days to Assign: measures the number of days it took a lead to be assigned after creation.
Days to Close: measures the number of days it took a lead to be closed (marked Won).
Expected MRR: measures the Expected Recurring Revenue of a lead.
Expected Revenue: measures the Expected Revenue of a lead.
Prorated MRR: measures the Prorated Monthly Recurring Revenue of a lead.
Prorated Recurring Revenues: measures the Prorated Recurring Revenues of a lead.
Prorated Revenue: measures the Prorated Revenue of a lead.
Recurring Revenues: measures the Recurring Revenue of a lead.
Count: measures the total amount of leads that match the search criteria.
View options¶
After configuring filters, groupings, and measurements, the Pipeline Analysis page can display the data in a variety of ways. By default, the page uses the graph view, but can be changed to a pivot view or a list view.
To change the pipeline to a different view, click one of the view icons, located in the top-right of the Pipeline Analysis page.
The graph view is the default selection for the Pipeline Analysis page. It displays the analysis as either a: bar chart, line chart, or pie chart.
This view option is useful for quickly visualizing and comparing simple relationships, like the Count of leads in each stage, or the leads assigned to each Salesperson.
By default, the graph measures the Count of leads in each group, but this can be changed by clicking the Measures button, and selecting another option from the resulting drop-down menu.
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- The Pipeline Analysis page in graph view with the bar, line and pie chart buttons above the chart.
- highlight
- The chart-type buttons (red frame).
- data
- Demo pipeline, count per stage.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the chart and its button row.
Tip
When using a bar chart in this view, consider deselecting the Stacked option, in order to make the breakdown of results more legible.

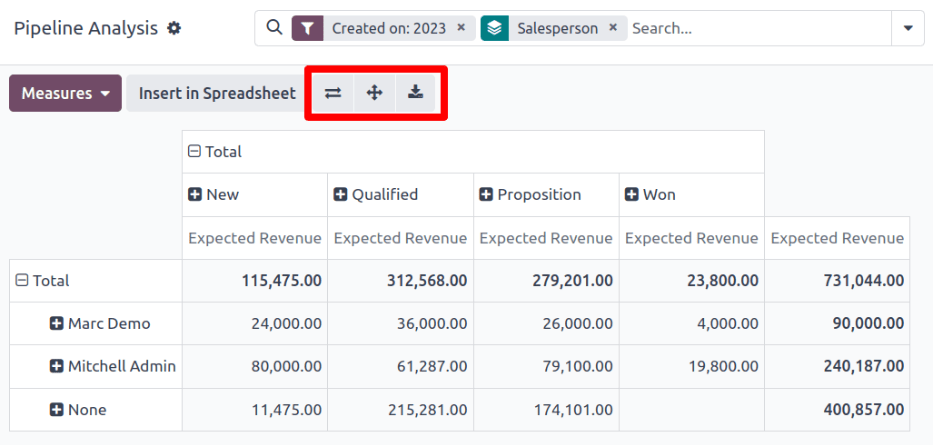

The pivot view displays the results of the analysis as a table. By default, the table groups the results by the stages of the sales pipeline, and measures Expected Revenue.
The pivot view is useful for analyzing more detailed numbers than the graph view can handle, or for downloading the data to a spreadsheet, where custom formulas can be set up, like in an Excel file.
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- The Pipeline Analysis page in pivot view, with the Flip Axis, Expand All and Download xlsx buttons above the table.
- highlight
- The three buttons above the table (red frame).
- data
- Stages in the rows, expected revenue as measure.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the table and its button row.
The three icons at the top-left of the page perform the following functions:
Flip Axis: flips the X and Y axis for the entire table.
Expand All: when additional groupings are selected using the ➕ (plus sign) icons, this button opens those groupings under every row.
Download xlsx: downloads the table as an Excel file.
Note
The Stage grouping cannot be removed, but the measurement can be changed by clicking the Measures button, and selecting another option.

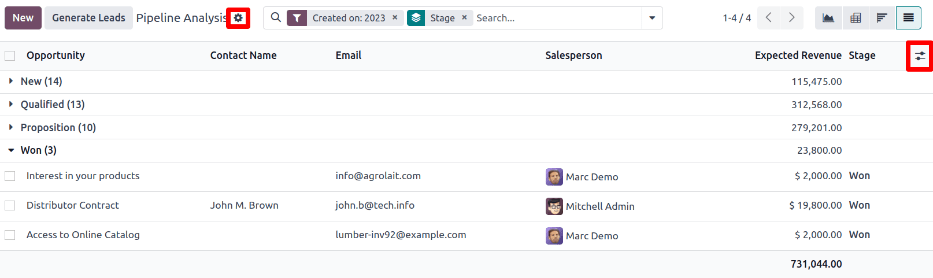

The list view displays a single list of all leads matching the search criteria. Clicking a lead opens the record for closer review. Additional details such as Country, Medium, and more can be added to the list, by clicking the Filters icon in the top-right of the list.
This view option is useful for reviewing many records at once.
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- The Pipeline Analysis page in list view, showing all leads matching the search criteria with the optional-columns toggle at the right of the header.
- highlight
- The optional-columns toggle (red frame).
- data
- Demo leads list.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the list.
Clicking the ⚙️ (gear) icon opens the Actions drop-down menu, with options for the following:
Import records: opens a page for uploading a spreadsheet of data, as well as a template spreadsheet to easily format that data.
Export All: downloads the list as an xlsx file for Excel.

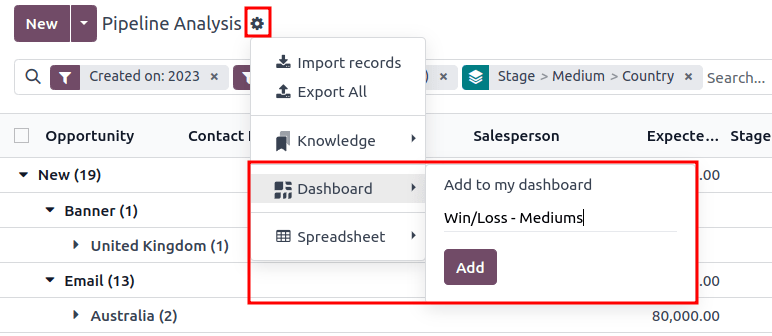

Dashboard: adds the list to My Dashboard in the Dashboards app.
Note
On the list view, clicking New closes the list, and opens the New Quotation page. Clicking Generate Leads opens a pop-up window for lead generation. Neither feature is intended to manipulate the list view.
Create reports¶
After understanding how to navigate the pipeline analysis page, the Pipeline Analysis page can be used to create and share different reports. Between the pre-made options and custom filter and groupings, almost any combination is possible.
Once created, reports can be saved to favorites, shared with other users, and/or added to a dashboard.
A few common reports that can be created using the Pipeline Analysis page are detailed below.
Win/Loss reports¶
Win/Loss is a calculation of active or previously active leads in a pipeline that were either marked as Won or Lost over a specific period of time. By calculating opportunities won over opportunities lost, teams can clarify key performance indicators (KPIs) that are converting leads into sales, such as specific teams or team members, certain marketing mediums or campaigns, and so on.
A win/loss report filters the leads from the past year, whether won or lost, and groups the results by their stage in the pipeline. Creating this report requires a custom filter, and grouping the results by Stage.
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- The search bar of the win/loss report showing the Created on, Stage and Active facets.
- highlight
- The three facets (red frame).
- data
- Created on: last 12 months; grouped by Stage; Active is set or not set.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the search bar.
Follow the steps below to create a win/loss report:
Navigate to .

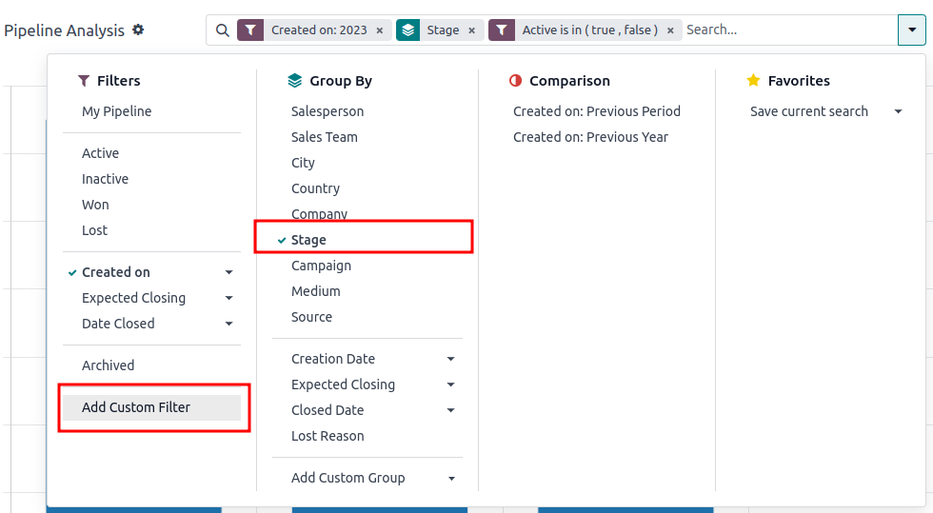

On the Pipeline Analysis page, click the ⬇️ (down arrow) icon, next to the search bar, to open a drop-down menu of filters and groupings.
screenshot: sales-crm-win-loss-filters-panel- menu
- CRM ‣ Reporting ‣ Pipeline ‣ Filters
- shows
- The open search panel with the filters needed for a basic win/loss report selected.
- highlight
- The selected filters (red frame).
- data
- "Won" and "Lost" filters selected.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the search panel.
In drop-down menu that appears, under the Group By heading, click Stage.
Under the Filters heading, click Add Custom Filter to open another pop-up menu.
In the Add Custom Filter pop-up menu, click on the first field in the Match any of the following rules: section. By default, this field displays Country.
Clicking that first field reveals a sub-menu with numerous options to choose from. From this sub-menu, locate and select the Active option. Doing so automatically populates the remaining fields.
The first field reads: Active. The second field reads: is. And lastly, the third field reads: set.
In total, the rule reads: Active is set.
Click New Rule, change the first field to Active, and the last field to not set. In total, the rule reads Active is not set.
Click Add.
- menu
- CRM ‣ Reporting ‣ Pipeline ‣ Filters ‣ Add Custom Filter
- shows
- The "Add Custom Filter" pop-up with two rules matched with "any": Active is set, and Active is not set.
- highlight
- The two Active rules (red frame).
- data
- Match any of: Active is set / Active is not set.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the pop-up.
The report now displays the total Count of leads, whether “Won” or “Lost,” grouped by their stage in the CRM pipeline. Hover over a section of the report to see the number of leads in that stage.
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- A basic win/loss report: a bar chart of won and lost leads grouped by pipeline stage.
- highlight
- No highlight; the chart is the subject.
- data
- Demo pipeline, won and lost leads of the past year.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the chart.
Customize win/loss reports¶
After creating a win/loss report, consider using the options below to customize the report for different needs.
Example
A sales manager might group wins and losses by salesperson, or sales team, to see who has the best conversion rate. Or, a marketing team might group by sources, or medium, to determine where their advertising has been most successful.
To add more filters and groups, click the ⬇️ (down arrow) icon, next to the search bar, and select one or more options from the drop-down menu.
Some useful options include:
Created on: adjusting this filter to a different period of time, such as the last 30 days, or the last quarter, can provide more timely results.
Add Custom Filter: clicking this option, and scrolling through the numerous options in the drop-down menu, opens up additional search criteria, like Last Stage Update or Lost Reason.
Add Custom Group > Active: Clicking separates the results into Won (true) or Lost (false). This shows at what stage leads are being marked Won or Lost.
Multiple Groupings: add multiple Group By selections to split results into more relevant and manageable chunks.
Adding Salesperson or Sales Team breaks up the total count of leads in each Stage.
Adding Medium or Source can reveal what marketing avenues generate more sales.
- menu
- CRM ‣ Reporting ‣ Pipeline ‣ Filters
- shows
- The open search panel with the Won and Lost filters highlighted among the available filters.
- highlight
- The Won and Lost filters (red frame).
- data
- Demo database.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the search panel.

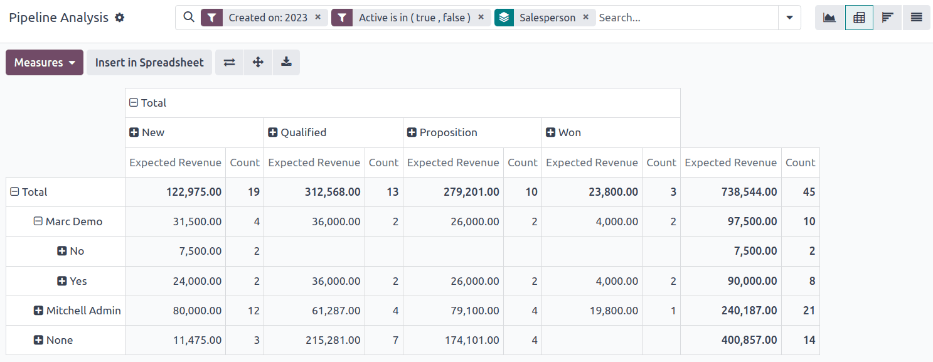

By default, pivot view groups win/loss reports by Stage and measures Expected Revenue.
To flesh out the table:
Click the ⬇️ (down arrow) next to the search bar.
In the pop-up menu, replace the Stage grouping with something like Salesperson or Medium.
Click the Measures button and click Count to add the number of leads back into the report.
Other useful measures for pivot view include Days to Assign and Days to Close.
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- A win/loss report in pivot view, with the stages in the rows and the won/lost split in the columns.
- highlight
- No highlight; the table is the subject.
- data
- Demo pipeline, count measure.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the table.

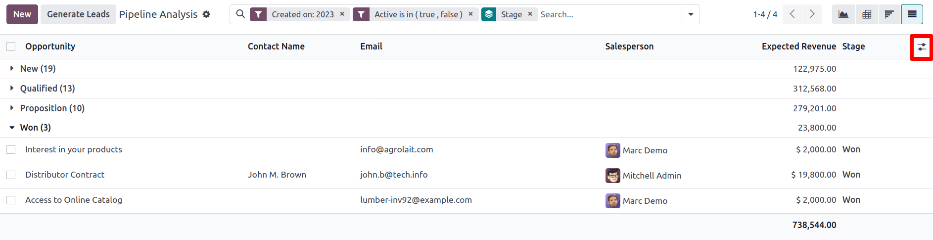

In list view, a win/loss report displays all leads on a single page.
To better organize the list, click the ⬇️ (down arrow) next to the search bar, and add more relevant groupings or re-organize the existing ones. To re-order the nesting, remove all Group By options and re-add them in the desired order.
To add more columns to the list:
Click the Filters icon in the top-right of the page.
Select options from the resulting drop-down menu. Some useful filters include:
Campaign: Shows the marketing campaign that originated each lead.
Medium: Shows the marketing medium (Banner, Direct, Email, Google Adwords, Phone, Website, etc.) that originated each lead.
Source: Shows the source of each lead (Newsletter, Lead Recall, Search Engine, etc.).
- menu
- CRM ‣ Reporting ‣ Pipeline
- shows
- A win/loss report in list view, listing every won and lost lead with its stage and expected revenue.
- highlight
- No highlight; the list is the subject.
- data
- Demo pipeline, won and lost leads.
- module
- crm
- notes
- English UI, light theme, 1440px width, crop to the list.
