Manufacturing product configuration¶
In order to manufacture a product in Odoo Manufacturing, the product must be properly configured. Doing so consists of enabling the Manufacturing route and configuring a bill of materials (BoM) for the product. Once these steps are completed, the product is selectable when creating a new manufacturing order.
Activate the Manufacture route¶

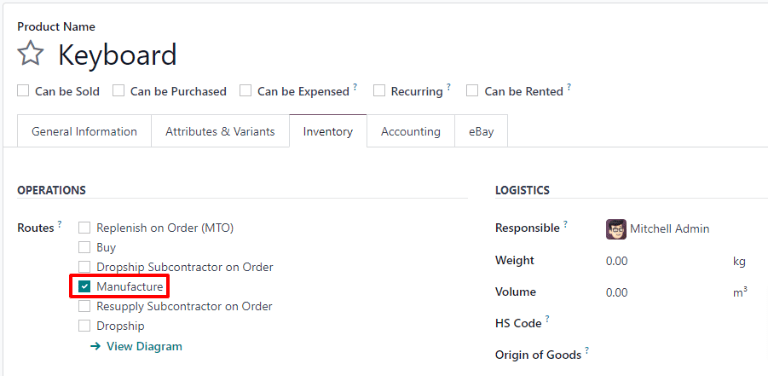

The Manufacture route is activated for each product on its own product page. To do so, begin by navigating to . Then, select an existing product, or create a new one by clicking New.
On the product page, select the Inventory tab, then enable the Manufacture checkbox in the Operations section. This tells Odoo the product can be manufactured.
- menu
- Manufacturing ‣ Products ‣ Products ‣ (product) ‣ Inventory tab
- shows
- The Inventory tab of a product form, "Operations" section, with the "Manufacture" route checkbox ticked among the other route checkboxes.
- highlight
- The "Manufacture" checkbox.
- data
- Product "Drawer".
- module
- mrp
- notes
- English UI, light theme, 1440px width, crop to the "Operations" section.
Lot/serial number tracking¶

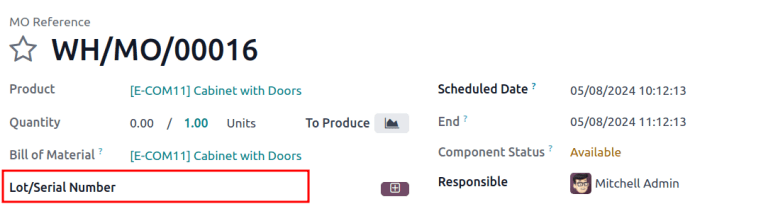

The assignment of lots or serial numbers to newly manufactured products is optional. To optionally assign lots or serial numbers to newly manufactured products, go to the General Information tab. In the Tracking field, select By Unique Serial Number or By Lots. This field only appears once the Lots & Serial Numbers feature is enabled in .
Doing so enables the Lot/Serial Number field on a confirmed manufacturing order, where the produced lot or serial number is registered (or auto-generated, for products tracked by serial number) before clicking Produce All.
- menu
- Manufacturing ‣ Operations ‣ Manufacturing Orders ‣ (confirmed MO)
- shows
- A confirmed MO for a serial-tracked product with the "Lot/Serial Number" field, next to the "Produce All" button, showing an auto-generated serial number.
- highlight
- The "Lot/Serial Number" field.
- data
- MO "WH/MO/00001" for a serial-tracked product.
- module
- mrp
- notes
- English UI, light theme, 1440px width, crop to the top of the form.
Configure a bill of materials (BoM)¶
Next, a BoM must be configured for the product so Odoo knows how it is manufactured. A BoM is a list of the components and operations required to manufacture a product.

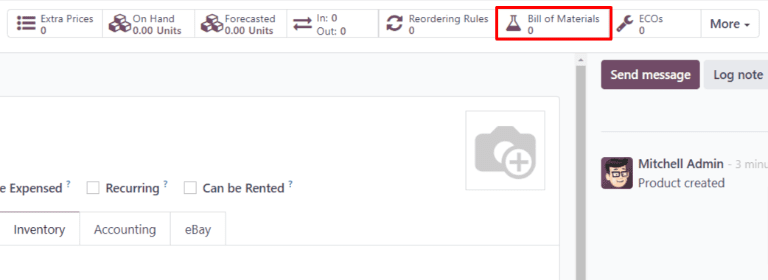

To create a BoM for a specific product, navigate to , then select the product. On the product page, click the Bill of Materials smart button at the top of the page, then select New to configure a new BoM.
- menu
- Manufacturing ‣ Products ‣ Products ‣ (product)
- shows
- A product form with the "Bill of Materials" smart button in the button box.
- highlight
- The "Bill of Materials" smart button.
- data
- Product "Drawer", no BoM yet.
- module
- mrp
- notes
- English UI, light theme, 1440px width, crop to the button box.
On the BoM, the Product field auto-populates with the product. In the Quantity field, specify the number of units that the BoM produces.
Add a component to the BoM by selecting the Components tab and clicking Add a line. Select a component from the Component drop-down menu, then enter the quantity in the Quantity field. Continue adding components on new lines until all components have been added.
- menu
- Manufacturing ‣ Products ‣ Bills of Materials ‣ (BoM) ‣ Components tab
- shows
- The Components tab with two component lines and their quantities filled in.
- data
- BoM for product "Drawer"; components "Drawer Case" and "Drawer Slide".
- module
- mrp
- notes
- English UI, light theme, 1440px width, crop to the tab.

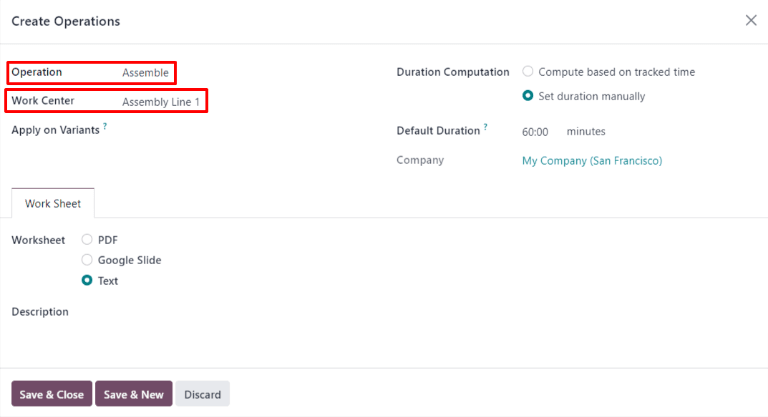

Next, select the Operations tab. Click Add a line and a Create Operations pop-up window appears. In the Operation field, specify the name of the operation being added (e.g. Assemble, Cut, etc.). Select the work center where the operation will be carried out from the Work Center drop-down menu. Finally, click Save & Close to finish adding operations, or Save & New to add more.
Important
The Operations tab only appears if the Work Orders setting is enabled. To do so, navigate to , then enable the Work Orders checkbox.
- menu
- Manufacturing ‣ Products ‣ Bills of Materials ‣ (BoM) ‣ Operations tab
- shows
- The Operations tab with one operation line, "Assembly", assigned to work center "Assembly Line 1".
- data
- BoM for product "Drawer"; operation "Assembly" on work center "Assembly Line 1".
- module
- mrp
- notes
- English UI, light theme, 1440px width, crop to the tab.
Learn more
The section above provides instructions for creating a basic BoM that allows a product to be manufactured in Odoo. However, it is by no means an exhaustive summary of all the options available when configuring a BoM. For more information about bills of materials, see the documentation on how to create a bill of materials.
