Manage inbound messages¶

An inbound message is an email delivered to an Odoo database. Anyone can send an email to an email alias created in the database or reply to an email that was previously sent from the database based on the reply-to header.

Email aliases¶

Model specific aliases¶

Some applications have their specific aliases (sales teams, projects, etc.). These aliases are used to:

Create a record when an email is sent directly to the alias,
Receive replies to an email initially sent from a record.

Example

screenshot: general-email-inbound-sales-team-alias

menu: CRM ‣ Configuration ‣ Sales Teams ‣ (a team)
shows: Sales team form with the Email Alias field set to "info" @ "company-name.com".
highlight: The Email Alias field.
data: Sales team "Europe".
module: crm, mail
notes: English UI, crop to the relevant area.

In the example displayed above, sending an email to [email protected] will create a new opportunity or a new lead automatically assigned to the corresponding sales team. If an email is sent from the chatter of an existing opportunity, the reply-to will be [email protected]. The reply will be posted in the right chatter, according to the message-id header.

Catchall¶

If an application does not have an alias, a generic fallback alias is used: the catchall. An email sent from a chatter has a reply address set to this catchall alias. A reply sent to the catchall is posted to the right chatter thanks to the message-id header.

By default, the local-part catchall will be used. Enable Developer mode (debug mode) and go to Settings ‣ Technical ‣ Emails: Alias Domains to access the configuration.

An email to the catchall always needs to be a reply to a previous email sent from the database. If an email is sent directly to the catchall, the sender will receive the following message:

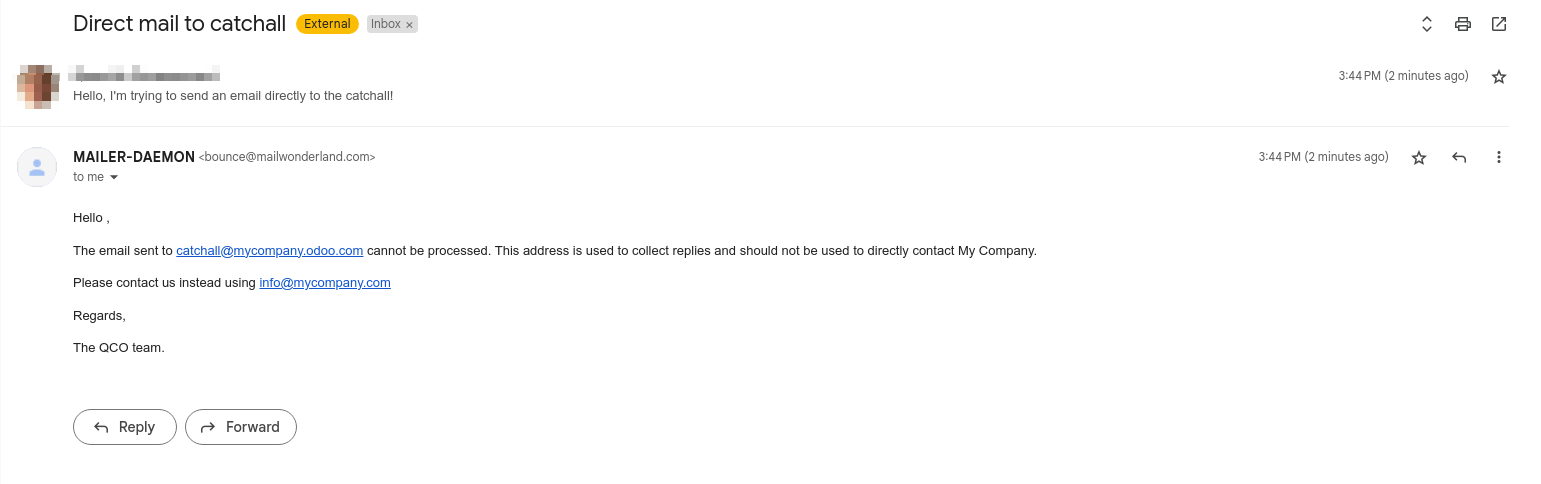

screenshot: general-email-inbound-catchall-bounce

menu: (email client)
shows: The automatic bounce email received after writing directly to the catchall address, explaining that the address is only for replies and giving the company email address.
module: mail
notes: Any email client; English; example domain.

Note

The email address [email protected] displayed in the screenshot above is the email address set on the company. Upon entering the developer mode on a company profile, additional configuration options (such as catchall and bounce) become readable. It can be modified by clicking on the internal link of the Email Domain. It is generally not recommended to modify these options unless specific needs dictate, as it will affect all replies to previously sent emails.

Example

An alias can be configured on a sales team in the CRM app. When a customer replies to an email coming from the CRM app, the reply-to is [email protected].

When an email is sent from the Contact app, the reply address is [email protected] because there is no alias on the contact model.

Note

It is advised to keep the local-part of the catchall and the bounce unchanged. If this value is modified, previous emails sent from the database will still have the previous local-part values. This could lead to replies not being correctly received in the database.

Bounce¶

In the same way the catchall alias is used to build the reply address, the bounce alias is used to build the return-path of the email. The return-path is used when emails cannot be delivered to the recipient and an error is returned to the sender.

By default the name bounce will be used. Enable Developer mode (debug mode) and go to Settings ‣ Technical ‣ Emails: Alias Domains to access the configuration.

When an error occurs, a notification is received and displayed in a red envelope in the chatter. In some cases, the red envelope can just contain a no error message, meaning there is an error that could not be handled by Odoo.

A notification will also be displayed in the Discuss icon on the navigation bar.

screenshot: general-email-inbound-failure-navbar

menu: Top menu bar ‣ Discuss (messaging) icon
shows: The messaging dropdown with a "Delivery failure" notification for an email sent to a contact.
highlight: The failure notification.
module: mail
notes: English UI, crop to the relevant area.

Example

If the email address of the recipient is incorrect, by clicking on the red envelope in the chatter an error message containing the reason for the failure will be given.

screenshot: general-email-inbound-red-envelope

menu: Contacts ‣ (a contact) ‣ chatter
shows: A sent message in the chatter with the red envelope icon clicked, showing the failure reason (e.g., invalid domain).
highlight: The red envelope and the error popover.
module: mail
notes: English UI, crop to the relevant area.

Receiving emails¶

Odoo does not receive emails by itself: the emails sent to the aliases, the catchall, and the bounce address of the alias domain are delivered to the mail server of that domain, and must then be brought into the database with one of the methods described below. On hosted databases, this is usually set up by the hosting provider.

Use a custom domain for inbound messages¶

The alias domain must be selected in the general settings. If you have multiple companies, each one must be configured.

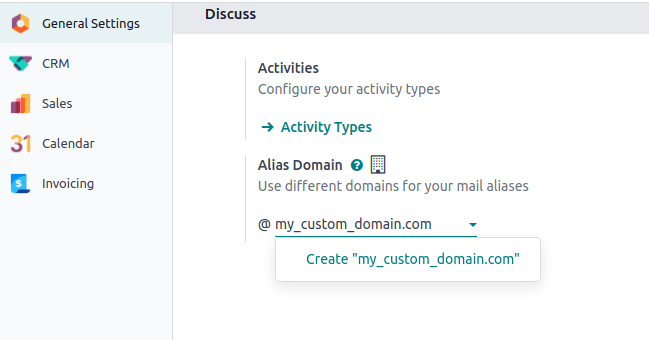

screenshot: general-email-inbound-alias-domain-setting

menu: Settings ‣ General Settings ‣ Emails
shows: The "Alias Domain" setting with the company's custom domain selected.
highlight: The Alias Domain field.
data: Alias domain "company-name.com".
module: mail
notes: English UI, crop to the relevant area.

All the aliases will use this custom domain. Replies on models for which an alias is configured are done to [alias]@my-custom-domain.com. Replies to other models are sent to the catchall through [email protected].

screenshot: general-email-inbound-custom-domain-diagram

menu: (diagram)
shows: Diagram of the inbound route with a custom domain: replies and alias emails go to [alias]@my-custom-domain.com, reach the domain's mail server (MX), and are brought into Odoo by redirection, incoming mail server, or MX record to the Odoo mail gateway.
module: mail
notes: Simple schematic drawing, not a UI screenshot.

Important

If emails are sent using the default mail server while using a custom domain, follow the “Using a custom domain with the default mail server” instructions.

Since this custom domain is used, all emails using an alias (replies, bounces and direct sends) are sent to an address of the domain. They are thus delivered to the email server linked to the domain (MX record). To display them in the chatter or to create new records, it is necessary to retrieve these incoming emails in the Odoo database.

Method	Benefits	Drawbacks
Redirections	Easy to set up, emails are directly sent to the database.	Each alias of a database needs to be configured.
Incoming mail servers	Allows to keep a copy of the email in your mailbox (with IMAP). Allows to create records in the chosen model.	Depends on a CRON, meaning emails are not retrieved immediately in the database. Each alias of a database needs to be configured.
MX record	Only one record needs to be created to make all aliases work properly.	Using a subdomain is required. Requires advanced technical knowledge.

Important

The redirection and the MX record methods require a mail server that passes the emails to the Odoo database through the mail gateway script. Going through this script requires advanced technical and infrastructure knowledge.

Important

Refer to your provider’s documentation for more detailed information on how to handle the methods detailed below.

Redirections¶

Redirections allow messages to be received without delay in the database. The mailboxes of the custom domain are redirected to the addresses on which the database receives emails through the mail gateway (e.g., a dedicated subdomain provided by the hosting provider or the system administrator).

It is mandatory to redirect the catchall and bounce address. Every other alias used must be redirected as well.

Example

With one sales team, and a receiving domain odoo.company-name.com, the following redirections are required:

[email protected] → [email protected]
[email protected] → [email protected]
[email protected] → [email protected]

Important

Some providers ask to validate the redirection by sending a link to the target email address. This procedure is an issue for catchall and bounce since they are not used to create records.

Modify the catchall value on the mail alias domain. Developer mode (debug mode) must be enabled to access this menu. For example, it can be changed from catchall to temp-catchall. This will allow to use catchall as the local-part of another alias.
Open an app that uses an alias. For example, CRM contains aliases for each sales team. Set catchall as the local-part of the alias of a sales team.
The validation email will create a record in the CRM app. The email sent will be visible in the chatter, allowing you to validate the redirection.
Do not forget to change back the alias of the sales team and the catchall value on the mail alias domain, just as they were before this procedure.

Note

An alternative to redirections is forwarding. With forwarding, the address forwarding the email will be identified as the sender, while with redirections, the original sender will always remain.

Incoming mail servers¶

As mentioned earlier, using redirections is the recommended method to receive emails in Odoo. However, it is also possible to set up incoming mail servers. Using this method means creating an incoming email server for each mailbox on your server, catchall, bounce, and every alias of the database, in order to fetch all incoming emails.

Warning

Odoo’s Incoming Mail Servers feature is designed for shared inboxes (e.g., [email protected] or [email protected]) to route messages to team pipelines, tasks, or other documents.

Using personal email addresses (e.g., [email protected]) as incoming mail servers is not recommended. Doing so can lead to increased security risks, unintended message routing, privacy issues, and difficulties syncing replies correctly.

Incoming mail servers are created by going to Settings ‣ Technical ‣ Emails: Incoming Mail Servers, or, after enabling Use Custom Email Servers in the Emails section of the Settings app, by clicking Incoming Email Servers.

The incoming mail server form contains the following fields:

Name and Server Type (IMAP Server, POP Server, Local Server, or, depending on the installed modules, Gmail or Outlook OAuth).
Server Information: the server name, port, and SSL/TLS option.
Login Information: the username and password of the mailbox.
Create a New Record: the model in which new records are created for emails that are not replies to an existing conversation.
Keep Attachments and Keep Original (in the Advanced tab): whether attachments and a full copy of the original email are kept.

Click Test & Confirm to validate the connection, and Fetch Now to retrieve the emails immediately.

Important

We recommend using the IMAP protocol over the POP protocol, as IMAP fetches all unread emails, while POP fetches all the emails’ history and then tags them as deleted in your mailbox.

Tip

It is also possible to connect a mailbox through Gmail with Google OAuth or Outlook with Microsoft Azure OAuth.

Regardless of the protocol chosen, emails are fetched using the Mail: Fetchmail Service scheduled action.

Additionally, using an incoming mail server in Odoo gives the opportunity to create new records in a specified model. Each incoming mail server can create records in a different model.

Example

Emails received on [email protected] are fetched by the Odoo database. All fetched emails will create a new project task in the database.

screenshot: general-email-inbound-server-form

menu: Settings ‣ Technical ‣ Email ‣ Incoming Mail Servers ‣ New
shows: Incoming mail server form: Name, Server Type "IMAP Server", server, port, SSL/TLS, username, password, and "Create a New Record" set to Task.
highlight: The "Create a New Record" field.
data: Server "Tasks mailbox", imap.company-name.com, user [email protected].
module: mail
notes: English UI, developer mode active, crop to the form; blur the password.

MX record¶

A third option is to create a MX record in your DNS zone which specifies the mail server managing emails sent to your domain. Advanced technical knowledge is required.

Important

This configuration requires a dedicated subdomain (e.g., @mail.mydomain.com) whose MX record points to a mail server that passes all received emails to the Odoo database through the mail gateway. Ask your hosting provider or system administrator for the value of the MX record.

Infinite email loops¶

In some cases, infinite mailing loops can be created. Odoo provides some protection against such loops, ensuring the same sender cannot send too many emails that would create records to an alias in a specific time span.

By default, an email address can send up to 20 emails in 120 minutes. If more emails are sent, they are blocked and the sender receives the following message:

screenshot: general-email-inbound-loop-bounce

menu: (email client)
shows: The automatic reply received after sending too many emails to an alias in a short time, explaining that the message was blocked.
module: mail
notes: Any email client; English; example domain.

To change the default behavior, enable Developer mode (debug mode), then go to Settings ‣ Technical ‣ Parameters: System Parameters to add two parameters.

For the first parameter, enter mail.gateway.loop.minutes as the Key and choose a number of minutes as the Value (120 is the default behavior).
For the second parameter, enter mail.gateway.loop.threshold as the Key and choose a number of emails as the Value (20 is the default behavior).

Allow alias domain system parameter¶

Incoming aliases are set in the Odoo database to create records by receiving incoming emails. To view aliases set in the Odoo database, first activate the developer mode. Then, go to Settings app ‣ Technical ‣ Aliases.

The following system parameter, mail.catchall.domain.allowed, set with allowed alias domain values, separated by commas, filters out correctly addressed emails to aliases. Setting the domains for which the alias can create a task, lead, opportunity, etc., eliminates false positives where email addresses with only the prefix alias, not the domain, are present.

In some instances, matches have been made in the Odoo database when an email is received with the same alias prefix and a different domain on the incoming email address. This is true in the sender, recipient, and CC email addresses of an incoming email.

Example

When Odoo receives emails with the commercial prefix alias in the sender, recipient, or CC email addresses (e.g. [email protected]), the database falsely treats the email as the full commercial alias, with a different domain, and therefore, creates a task/lead/opportunity/etc.

To add the mail.catchall.domain.allowed system parameter, first, activate the developer mode. Then, go to Settings app ‣ Technical ‣ System Parameters. Click New. Then, type in mail.catchall.domain.allowed for the Key field.

Next, for the Value field, add the domains separated by commas. Manually (Save), and the system parameter takes immediate effect.

screenshot: general-email-inbound-allowed-domain

menu: Settings ‣ Technical ‣ Parameters ‣ System Parameters ‣ New
shows: System parameter form with Key "mail.catchall.domain.allowed" and Value "company-name.com,company-name.hu".
highlight: Key and Value.
module: base, mail
notes: English UI, developer mode active, crop to the form.

Local-part based incoming detection¶

When creating a new alias, there is an option to enable Local-part based incoming detection. If enabled, Odoo only requires the local-part to match for routing an incoming email. If this feature is turned off, Odoo requires the whole email address to match for routing an incoming email.
